Image intensifier tube
V7669U
/e_v7669u_v7670u_v10308u_v10309u_pp_xx.jpg/_jcr_content/renditions/thumb-e_v7669u_v7670u_v10308u_v10309u_pp_xx.jpg)
Image intensifiers are devices that can detect and amplify very low levels of light to capture images.
They are used in a wide range of applications, including imaging of micro-discharges in the invisible regions and observation of high-speed phenomena.
The V7669U is multialkali photocathode image intensifier with spectral response range from 160 nm to 900 nm and an effective photocathode area of Φ25 mm.
Specifications
| Feature | Second Generation, High Resolution |
|---|---|
| Spectral Response (Short) | 160 nm |
| Spectral Response (Long) | 900 nm |
| Spectral Response (Peak) | 430 nm |
| Input Window | Synthetic Silica |
| Index of Refraction | 1.46 |
| Effective Photocathode Area | Dia.25 mm |
| Stage of MCP | 1 |
| Photocathode Material | Multialkali |
| Gate Function | Without |
| Luminous Sensitivity | 280 μA/lm |
| Radiant Sensitivity | 62 mA/W |
| Quantum Efficiency (QE) | 18 % |
| Luminous Gain | 1.2 x 104 (lm/m2)/lx |
| Radiant Emittance Gain | 8.7 x 103 (W/m2)/(W/m2) |
| Equivalent Background Input (EBI) | 1.0 x 10-11 lm/cm2 |
| Equivalent Background Input (EBI) | 3.0 x 10-14 W/cm2 |
| Limiting Resolution | 64 Lp/mm |
| Operation Ambient Temperature | -20 to +40 ℃ |
| Storage Ambient Temperature | -55 to +60 ℃ |
| Maximum Shock | 300 m/s2 (30G), 18 ms |
| Maximum Vibration | 10 Hz to 55 Hz, 0.35 mm (p-p) |

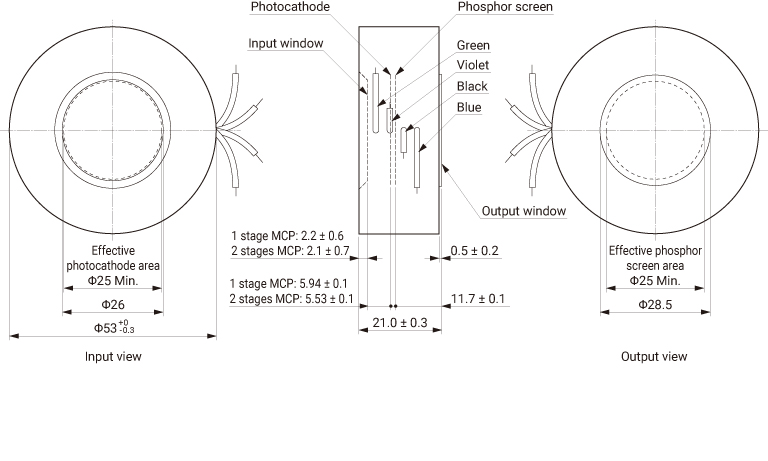

Dimensional outline (Unit: mm)
