Image sensor module controller

C7557-01

For control of image sensor module and data acquisition



The C7557-01 is a controller designed to drive image sensor modules with analog output. When connected to Hamamatsu image sensor module and a PC, the C7557-01 allows easy control of the module and data acquisition by using dedicated software that comes with the unit. The C7557-01 supports main models of Hamamatsu image sensor modules with built-in CCD/InGaAs image sensors.
The C7557-01 includes a driver/amplifier circuit for operating an image sensor module, a power supply circuit, a temperature stabilizer circuit, an A/D conversion circuit that converts analog signals from the detector head into digital signals, and a data interface.
The software runs on Microsoft® Windows®, by simple operation from the menu neatly displayed on the screen. The software includes various DLLs that support efficient software development.



Features
-Easy to control and data acquisition
-The included DLLs allow easy software development.
-Compact configuration

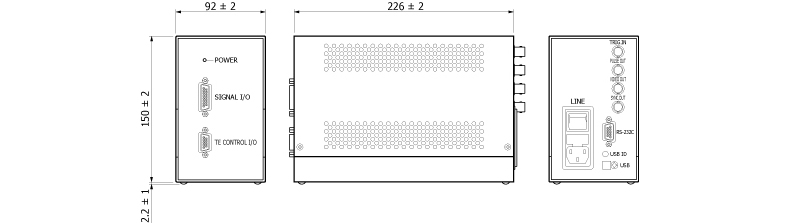

Dimensional outline (unit: mm)
