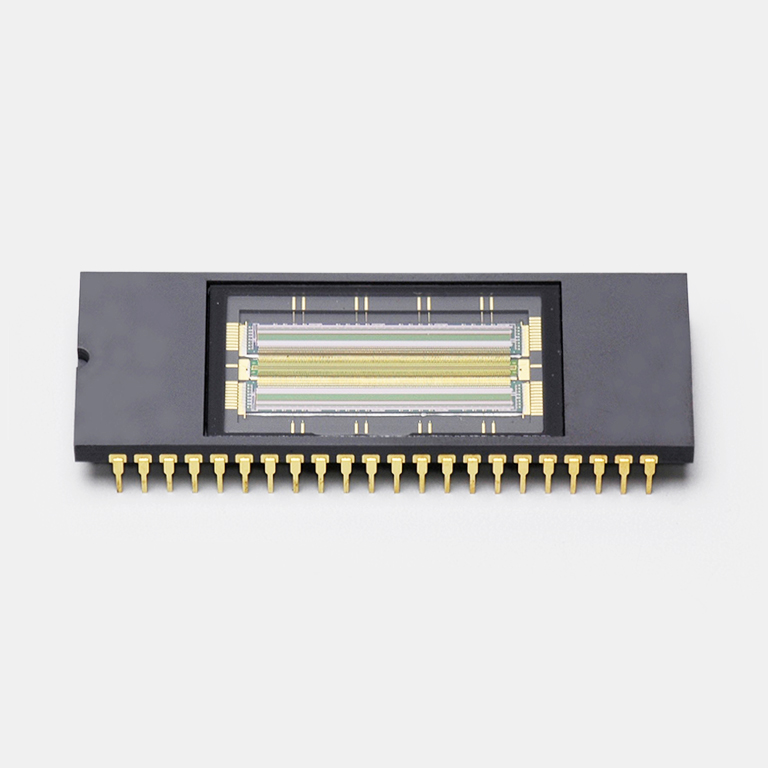

InGaAs linear image sensor

G10768-1024DB

Near infrared image sensor (0.9 to 1.7 μm) with 1024 pixels and high-speed line rate

The G10768-1024DB is a 1024-channel, high-speed infrared image sensor designed for applications such as foreign object screening and medical diagnostic equipment where a multichannel high-speed line rate is required. The signal processing circuit uses CTIA (Capacitive Transimpedance amplifiers) that allow signal readout while simultaneously integrating signals in all pixels via sample-and-hold circuits. A high-speed line rate is achieved through 8 output ports.


Features
- 1024 pixels [pixel size: 25 × 25 μm
- High-speed line rate: 39000 lines/s max.
- High-speed data rate: 5 MHz typ. (6.67 MHz max.)
- Choice of 4 conversion efficiency levels
- Timing generator incorporated
- Low dark current
- Room temperature operation

Image size 25.6 x 0.025 mm
Pixel size 25 x 25 μm
Pixel pitch 25 μm
Number of total pixels 1024 pixels
Package Ceramic
Cooling Non-cooled
Line rate (max.) 39000 lines/s
Spectral response range 900 to 1700 nm
Dark current (max.) 5 pA
Measurement condition Typ. Ta=25 ℃, unless otherwise noted
