InGaAs linear image sensor
The G12230-512WB is an InGaAs linear image sensor designed for near infrared multichannel spectrophotometry. Two InGaAs chips with different cutoff wavelengths are arranged very accurately in series. The G12230-512WB provides high S/N over a wide spectral response range. The CMOS chip consists of charge amplifiers, a shift register, and a timing generator. Charge amplifiers are configured with CMOS transistor array and are connected to each pixel of the InGaAs photodiode array. Since the signal from each pixel is read in charge integration mode, high sensitivity and stable operation are attained in a wide spectral response range. The package is hermetically sealed providing excellent reliability.
The signal processing circuit on the CMOS chip enables the selection of an optimum conversion efficiency (CE) for your application from the available two types using external voltage.
|Image size||12.8 x 0.25 mm|
|Pixel size||25 x 250 μm|
|Pixel pitch||25 μm|
|Number of total pixels||512 pixels|
|Line rate (max.)||9150 lines/s|

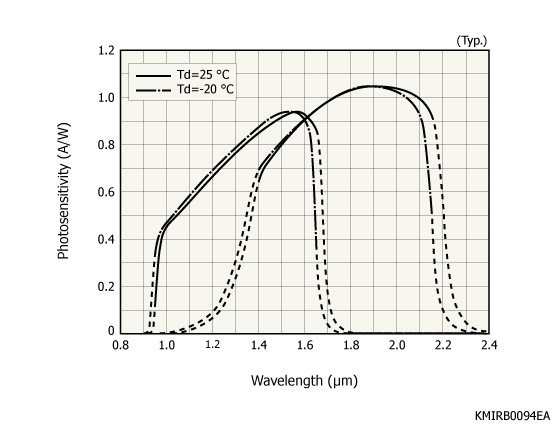

|Spectral response range||950 to 2150 nm|
|Measurement condition||Ta=25 ℃, Td=-20℃, Vdd=5 V, INP=Vinp=PDN=4 V, Fvref=1.2V, Vφ=5V, f=1 MHz|
