Infrared detector module with preamp

G7754-01

High sensitivity modules of easy-to-use



This device combines a dewar type detector with a compatible preamplifier, and easily operate to detect infrared radiation just by connecting to a DC power supply. Custom-designed devices with different active areas, FOV or amplifier gain, etc. are also available to meet your specific needs.


Features
- Compact integral detector unit
- Optimum connections between the detector element and preamplifier allow amplified signals to be easily obtained.

Type Metal dewar type
Built-in sensor InGaAs (G12183-010 chip)
Photosensitive area φ1 mm
Cooling Liquid nitrogen
Cutoff wavelength (typ.) 2.4 μm
Peak sensitivity wavelength (typ.) 2 μm
Measurement condition Typ. T=-196 ℃, unless otherwise noted

Spectral response

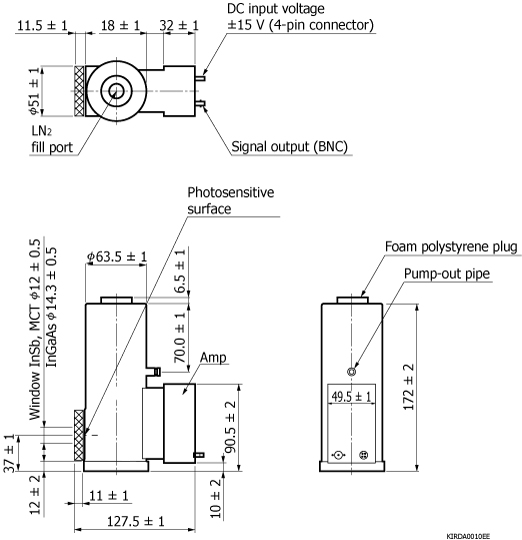

Dimensional outline (unit: mm)
