Infrared detector module with preamp


High sensitivity modules of easy-to-use


This device combine a dewar type detector with a compatible preamplifier, and easily operate to detect infrared radiation just by connecting to a DC power supply. Custom-designed devices with different active areas, FOV or amplifier gain, etc. are also available to meet your specific needs.

- Compact integral detector unit
- Optimum connections between the detector element and preamplifier allow amplified signals to be easily obtained.

Type Metal dewar type
Built-in sensor InSb
Photosensitive area φ0.6 mm
Cooling Liquid nitrogen
Cutoff wavelength (typ.) 5.5 μm
Peak sensitivity wavelength (typ.) 5.3 μm
Measurement condition Typ. T=-196 ℃, unless otherwise noted

Spectral response

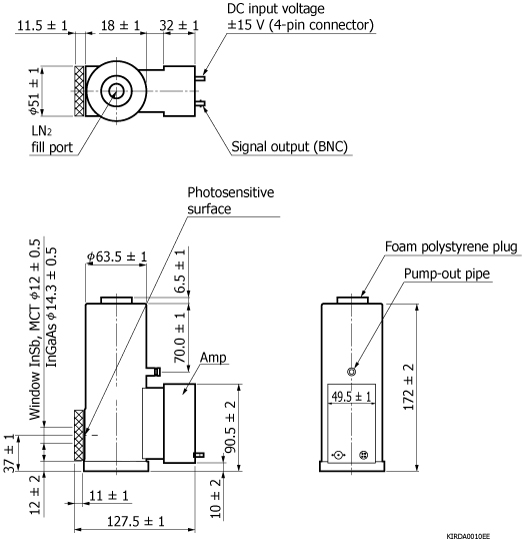

Dimensional outline (unit: mm)
