InGaAs PIN photodiode

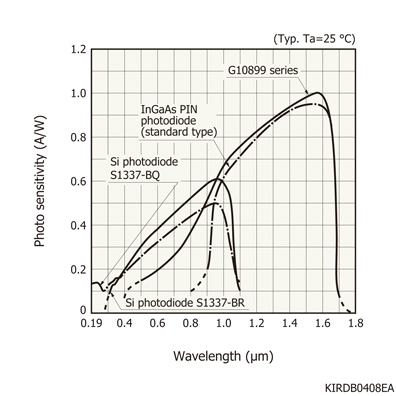

The G10899-003K is an InGaAs PIN photodiode that covers a wide spectral response range from 0.5 μm to 1.7 μm. While standard InGaAs PIN photodiodes have spectral response ranging from 0.9 μm to 1.7 μm, the G10899-003K has sensitivity extending to 0.5 μm on the shorter wavelength side. A wide range of spectrum can be detected with a single detector. The G10899-003K also features low noise and low dark current.
|Photosensitive area||φ0.3 mm|
|Number of elements||1|
|Spectral response range||0.5 to 1.7 μm|
|Peak sensitivity wavelength (typ.)||1.55 μm|
|Photosensitivity (typ.)||1 A/W|
|Dark current (max.)||1.5 nA|
|Cutoff frequency (typ.)||300 MHz|
|Terminal capacitance (typ.)||10 pF|
|Noise equivalent power (typ.)||5×10-15 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=1 V, Cutoff frequency: VR=1 V, RL=50 Ω, Terminal capacitance: VR=1 V, f=1 MHz|
