InGaAs PIN photodiode


Long wavelength type (cutoff wavelength: 2.6 μm)

- Cutoff wavelength: 2.6 μm
- Low cost
- Photosensitive area: φ0.3 mm
- Low noise
- High sensitivity
- High reliability
- High-speed response

Photosensitive area φ0.3 mm
Number of elements 1
Package Metal
Package Category TO-18
Cooling Non-cooled

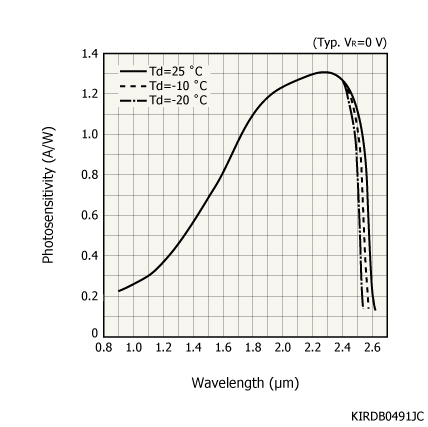

Spectral response range 0.9 to 2.6 μm
Peak sensitivity wavelength (typ.) 2.3 μm
Photosensitivity (typ.) 1.3 A/W
Dark current (max.) 4000 nA
Cutoff frequency (typ.) 50 MHz
Terminal capacitance (typ.) 50 pF
Noise equivalent power (typ.) 4×10-13 W/Hz1/2
Measurement condition Typ. Tc=-25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=0.5 V, Cutoff frequency: VR=0 V, RL=50 Ω, Terminal capacitance: VR=0 V, f=1 MHz


Dimensional outline (unit: mm)
