InSb photovoltaic detector


High-speed response, low-noise photovoltaic detectors

The P5968-100 is a photovoltaic detector having high sensitivity in the so-called atmospheric window at 3 to 5 μm. Custom devices are also available to meet your special request.

- Cooling hold time: 8 hours
- Built-in preamp type available

Photosensitive area φ1 mm
Number of elements 1
Package Metal dewar
Cooling Liquid nitrogen
Rise time (typ.) 70 ns
Measurement condition Td=-196 ℃, Detectivity D*: λ=λp, fc=1200 Hz, Δf=1 Hz

Spectral response

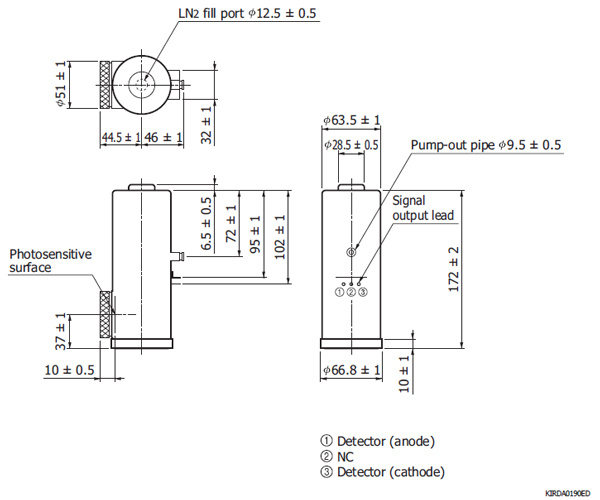

Dimensional outline (unit: mm)
