Si photodiode array
The S10917-35GT is a compact color sensor with a 3-channel photodiode mounted in one package, and sensitive to red (λ=590 to 680 nm), green (λ=470 to 600 nm) and blue (λ=390 to 530 nm) light. An infrared-cut filter is formed on the photosensitive area. This color sensor achieves superior cost performance and is suitable for monitoring brightness of RGB-LED backlight LCD in hand-held devices such as cell phones.
|Product type||RGB photodiode|
|Package type||COB type|
|Package size||3.0 × 1.6 × 1.0 mm|
|Photosensitive area||1 × 1 mm|

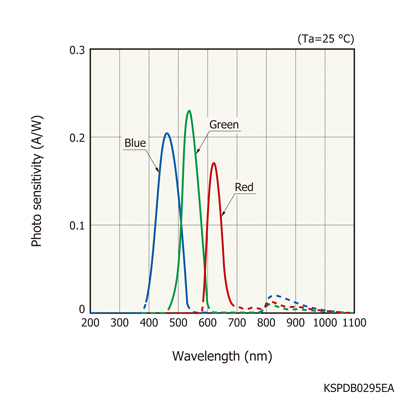

|Spectral response range (Blue)||390 to 530 nm|
|Spectral response range (Green)||470 to 600 nm|
|Spectral response range (Red)||590 to 680 nm|
|Peak sensitivity wavelength (Blue)||460 nm|
|Peak sensitivity wavelength (Green)||540 nm|
|Peak sensitivity wavelength (Red)||620 nm|
|Photosensitivity (Blue)||0.2 A/W|
|Photosensitivity (Green)||0.23 A/W|
|Photosensitivity (Red)||0.17 A/W|
|Dark current (max.)||0.05 nA|
|Terminal capacitance||12 pF|
|Rise time||0.1 μs|
|Operating temperature||-25 to +85 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Measurement condition||Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted|
