Color sensor

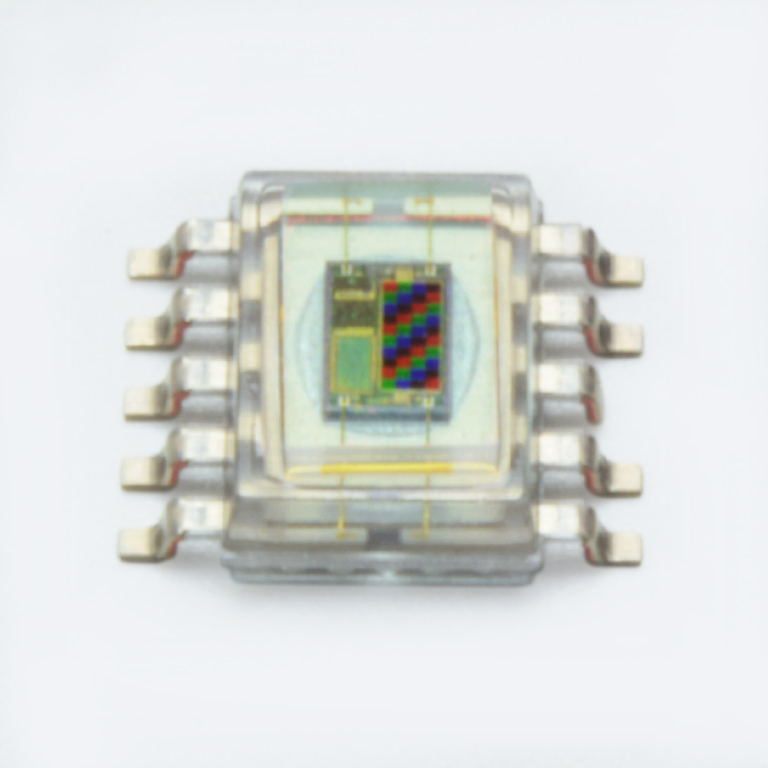

S13683-03DT

I2C interface-compatible color sensor (Reel packing)

The S13683-03DT is a digital color sensor that supports the I2C (inter-integrated circuit) interface. It is sensitive to red (λ=615 nm), green (λ=530 nm), and blue (λ=460 nm) light, and outputs detected results as 16-bit digital data for each color. The photodiode for each color is automatically switched sequentially to perform measurements. The sensitivity and integration time can be adjusted so that light measurements can be performed over a wide range. Stick packing type (S13683-04DS) with same specifications is also available.


Features
-I2C interface-compatible
-Sequential measurements of red, green, blue, and correction channel
-Correction channel
 The channels detect incident light entering from outside the filter.
The product subtracts the correction channel output to obtain high accuracy RGB data.
-2-step sensitivity switching (sensitivity ratio 1 : 10)
-Sensitivity adjustment by setting the integration time
-Low voltage (2.5 V or 3.3 V) operation
-Low current consumption: 75 uA typ.
-With internal infrared-cut filter
-Wide dynamic range (Low gain: 1 to 10 klx)
-Packing type: reel (S13683-03DT)
       stick (S13683-04DS)

Product type RGB digital color sensor
Package material Plastic
Package type Surface mount type
Package size 3.0 x 4.0 x 1.85 mm
Photosensitive area 0.54 x 1.1 mm
Spectral response range (Blue) 400 to 540 nm
Spectral response range (Green) 455 to 630 nm
Spectral response range (Red) 575 to 660 nm
Peak sensitivity wavelength (Blue) 460 nm
Peak sensitivity wavelength (Green) 530 nm
Peak sensitivity wavelength (Red) 615 nm
Photosensitivity Low range (Blue) 3.8 counts/lx
Photosensitivity Low range (Green) 8.7 counts/lx
Photosensitivity Low range (Red) 12.4 counts/lx
Photosensitivity Low range (Correction ch) 3.0 counts/lx
Photosensitivity High range (Blue) 40.0 counts/lx
Photosensitivity High range (Green) 86.0 counts/lx
Photosensitivity High range (Red) 122.0 counts/lx
Photosensitivity High range (Correction ch) 30.0 counts/lx
Operating temperature -40+85 deg.C
Storage temperature -40+105 deg.C
Measurement condition Typ. Ta=25 deg.C, Vdd=3.3 V, A light source, unless otherwise noted
