Photo IC diode

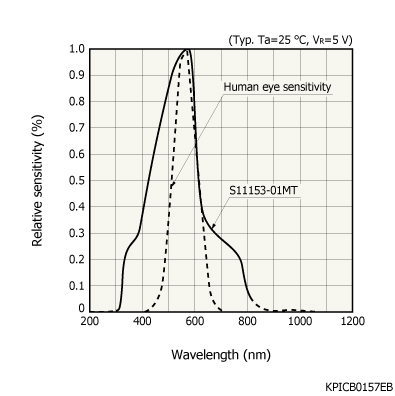

The S11153-01MT photo IC has spectral response close to human eye sensitivity. Two active areas are made on a single chip. Almost only the visible range can be measured by finding the difference between the two output signals in the internal current amplifier circuit. Compared to the previous type, the S11153-01MT has wide operating temperature range (-40 to +105 ℃).
-Wide operating temperature: -40 to +105 ℃
-Spectral response close to human eye sensitivity
-Lower output-current variation compared with phototransistors
-Low output deviation by different color temperature light source
-Suitable for lead-free reflow (RoHS compliance)
|Package type||Surface mount type|
|Reverse voltage||-0.5 to +12 V|
|Spectral response range||300 to 820 nm|
|Peak sensitivity wavelength||560 nm|
|Operating temperature||-40+105 deg.C|
|Storage temperature||-40+125 deg.C|
|Feature||Wide operating temperature: -40 to +105 deg.C|
|Measurement condition||Ta=25 ℃, Photocurrent: 2856 K, 100 lx|
