Photo IC diode

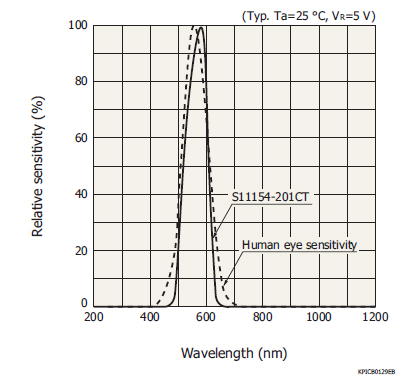

The S11154-201CT is a photo IC diode with spectral response characteristics that closely resemble human eye sensitivity. Two active areas are formed on the same chip, and the outputs of the two active areas are subtracted from each other by the current amplifier circuit, in order to have sensitivity alsmost only in the visible range and reduce the color temperature errors.
-Spectral response close to human eye sensitivity
-Redused color temperature error
-Lower output-current variation compared with phototransistors
-Low output deviation by different color temperature light source
-Suitable for lead-free reflow (RoHS compliance)
|Package type||COB (Chip On Board) type|
|Reverse voltage||-0.5 to +12 V|
|Spectral response range||480 to 640 nm|
|Peak sensitivity wavelength||580 nm|
|Operating temperature||-30 to +80 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Feature||Color temperature errors reduced type|
|Measurement condition||Ta=25 ℃, Photocurrent: 2856 K, 100 lx|
