Light-to-frequency converter photo IC
The S9705 is a photo IC that combines a photodiode and a current-to-frequency converter on a CMOS chip. Output is a square wave (50 % duty ratio) with frequency directly proportional to light intensity incident on the photodiode. The CMOS level digital output allows direct connection to a microcontroller or other logic circuitry. The S9705 has wide dynamic range and light intensity can be easily measured when used with a digital counter.
-Converts light intensity to frequency
-Wide dynamic range: 5 orders of magnitude
-Output timing reset function
-Digital output for direct interface to microcontroller
-4-pin plastic package
|Package type||Surface mount type|
|Supply voltage||2.7 to 5.5 V|

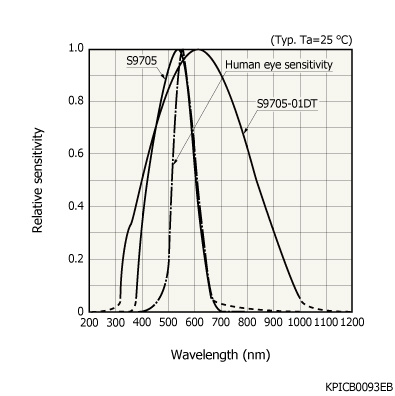

|Spectral response range||390 to 650 nm|
|Peak sensitivity wavelength||550 nm|
|Output frequency||50 kHz|
|Operating temperature||-40 to +85 deg.C|
|Storage temperature||-40 to +100 deg.C|
|Feature||CMOS level digital output|
