Photo IC for optical link

S7727

Receiver for 156 Mbps POF communications

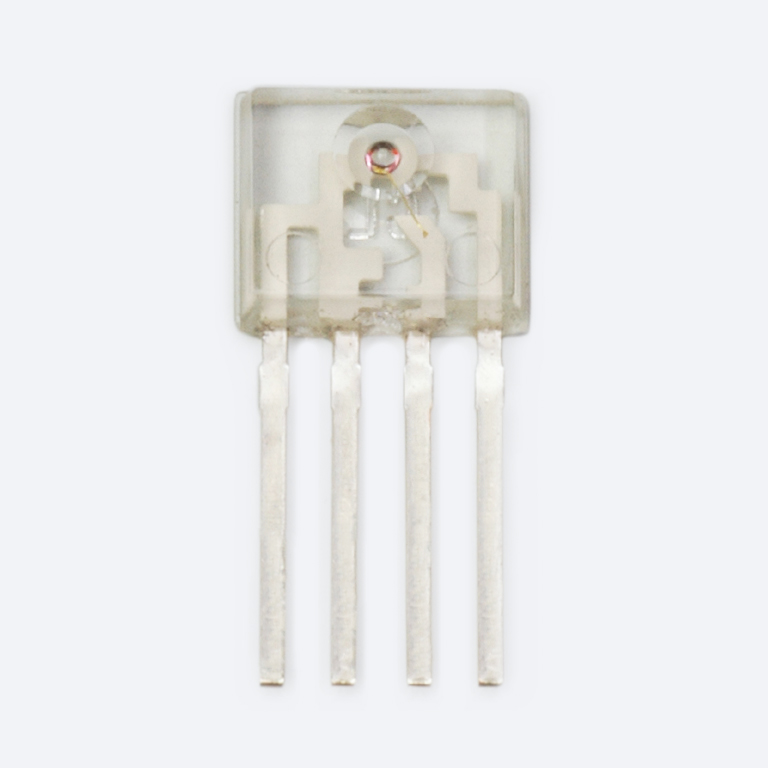

The S7727 is designed for high-speed POF (Plastic Optical Fiber) communications. This device is molded into miniature plastic packages with lenses, allowing easy and efficient coupling to a POF. The S7727 uses a monolithic photo IC that ensures high resistance to external noise and high reliability, and provides P-ECL voltage conversion output.


Features
-Photo IC receiver for POF data link
-Monolithic structure immune from external noise
-Data rates from 4 Mbps to 156 Mbps
-P-ECL voltage conversion output
-Designed to be used with L10881

Type1 For POF data links
Type2 P-ECL output
Part Number L10881
Package Plastic
Package type With lens
Bandwidth 4 to 156 Mbps
Operating temperature -20 to +70 deg.C
Storage temperature -40 to +85 deg.C
Measurement condition Ta=25 deg.C, Vcc=5.0 V

Dimensional outline (unit: mm)
