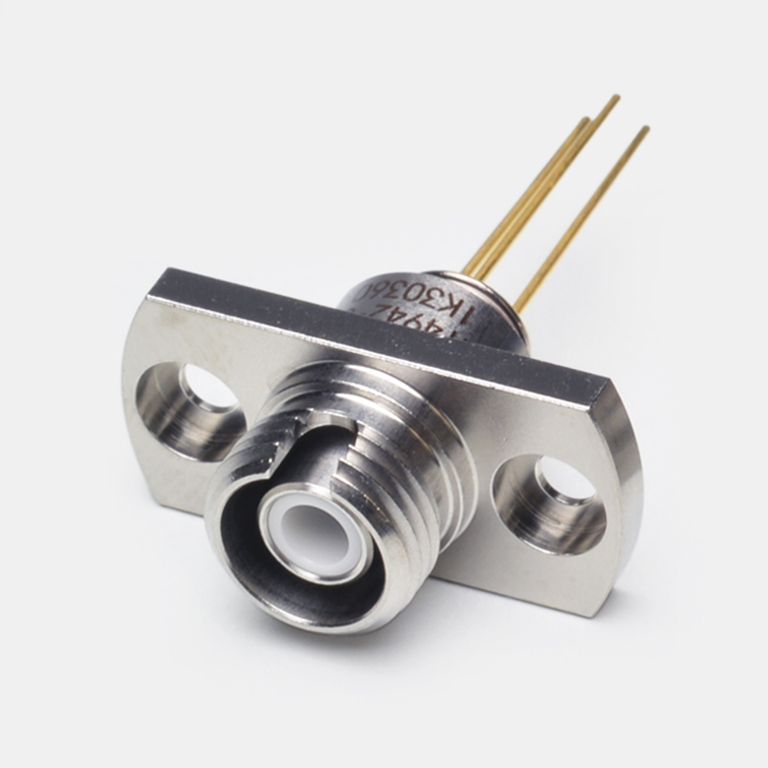

Si PIN photodiode


Multimode optical fiber compatible, receptacle type

This high-speed photosensor was developed for optical fiber communication in the 0.85 µm band. This receptacle type Si PIN photodiode is compatible with GI-50 multimode optical fiber.

- High-speed response: 1 GHz typ.
- GI-50 multimode optical fiber compatible


Photosensitive area -
Number of elements 1
Package Receptacle
Package category FC panel
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 760 nm
Photosensitivity (typ.) 0.42 A/W
Dark current (max.) 100 pA
Cutoff frequency (typ.) 1000 MHz
Terminal capacitance (typ.) 1.6 pF
Noise equivalent power (typ.) -
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=850 nm, Dark current: VR=3.3 V, Cutoff frequency: VR=3.3 V, Terminal capacitance: VR=3.3 V, f=1 MHz, unless otherwise noted

Dimensional outline (unit: mm)
