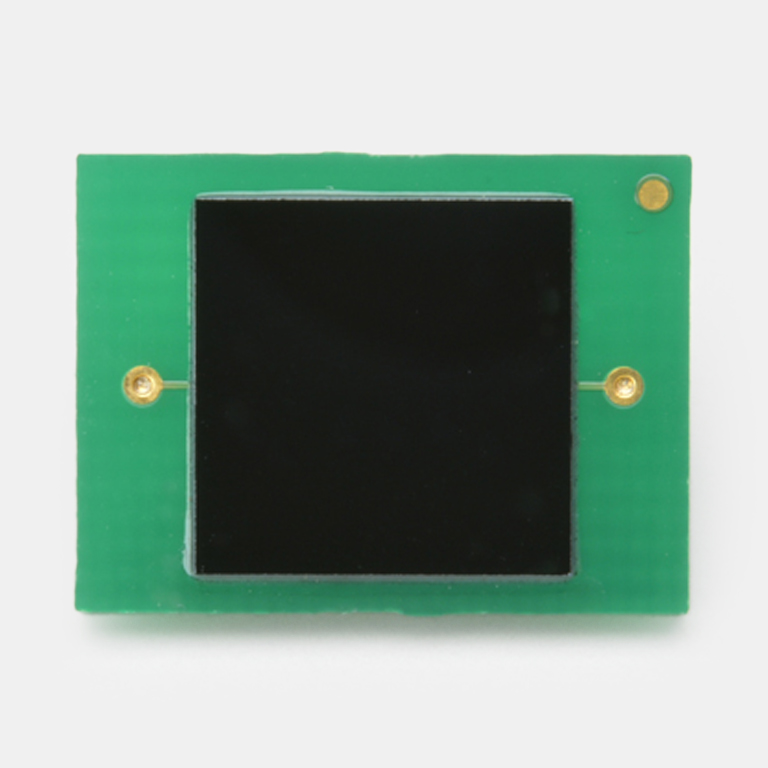

Si photodiode
S12498
A scintillator can be mounted directly on the chip.
The S12498 is a Si photodiode suitable for non-destructive inspection of baggage and the like and general industrial measurement. As it is a back-illuminated photodiode, photosensitive area does not have wires, and therefore a scintillator can be mounted directly on the photodiode.
Features
- Spectral response range : 400 to 1100 nm
- Photosensitive area: 6.0 × 6.0 mm - Easy scintillator mounting
Notice
The chip of this product is not sealed and is exposed. Parts such as electrodes on the chip are not protected by an enclosure or window and so require especially strict care during handling compared to ordinary products.
Before using this product, always read “Precautions / Unsealed products” described below.
Specifications
| Photosensitive area | 6.0 × 6.0 mm |
|---|---|
| Number of elements | 1 |
| Package | PWB with pins |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 10 V |
| Spectral response range | 400 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 920 nm |
| Photosensitivity (typ.) | 0.57 A/W |
| Dark current (max.) | 150 pA |
| Rise time (typ.) | 15 μs |
| Terminal capacitance (typ.) | 380 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=920 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
Spectral response
Dimensional outline (unit: mm)
