|Photosensitive area||10 × 10 mm|
|Number of elements||1|
|Reverse voltage (max.)||5 V|
|Spectral response range||340 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|

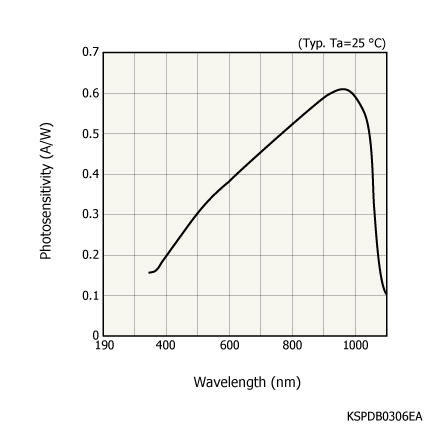

|Photosensitivity (typ.)||0.62 A/W|
|Dark current (max.)||200 pA|
|Rise time (typ.)||3 μs|
|Terminal capacitance (typ.)||1100 pF|
|Noise equivalent power (typ.)||1.5×10-14 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted|
