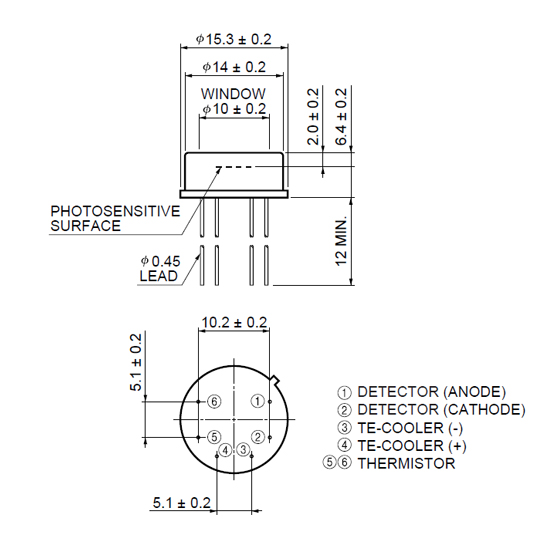

The S2592-04 combines a UV to near infrared Si photodiode with a thermoelectric cooler. A thermistor is also included in the same package to sense the Si photodiode chip temperature. This allows stable operation over long periods of time, making this sensor suitable for low-light-level detection where a high S/N is required. The S2592-04 is hermetically sealed in a TO-8 package.
|Photosensitive area||5.8 × 5.8 mm|
|Number of elements||1|
|Reverse voltage (max.)||5 V|

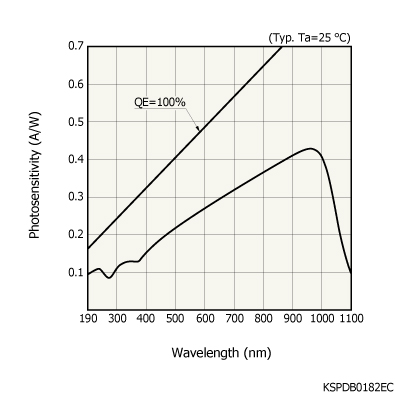

|Spectral response range||190 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.5 A/W|
|Dark current (max.)||200 pA|
|Rise time (typ.)||1 μs|
|Terminal capacitance (typ.)||380 pF|
|Noise equivalent power (typ.)||1.3×10-14 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted|
