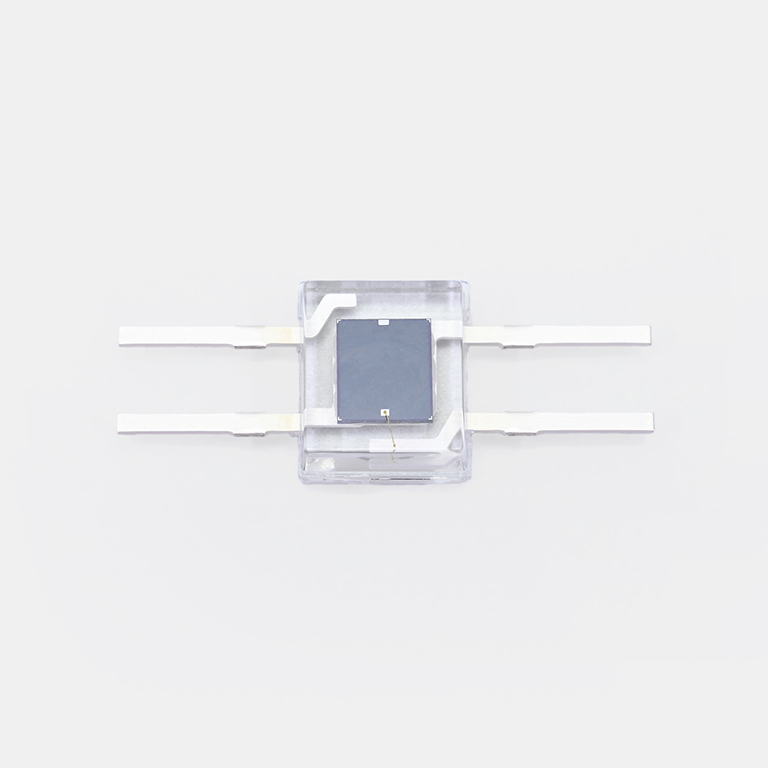

|Photosensitive area||2.4 × 2.8 mm|
|Number of elements||1|
|Reverse voltage (max.)||10 V|

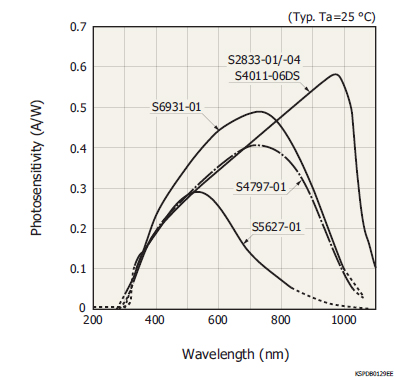

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.58 A/W|
|Dark current (max.)||10 pA|
|Rise time (typ.)||0.5 μs|
|Terminal capacitance (typ.)||200 pF|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity:λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted|
