Si PIN photodiode
The S3399 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 100 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.
|Photosensitive area||φ3 mm|
|Number of elements||1|
|Reverse voltage (max.)||30 V|

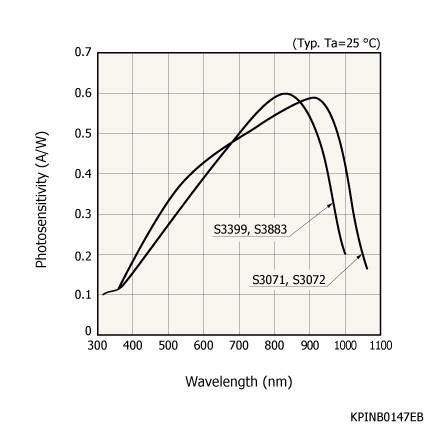

|Spectral response range||320 to 1000 nm|
|Peak sensitivity wavelength (typ.)||840 nm|
|Photosensitivity (typ.)||0.58 A/W|
|Dark current (max.)||1000 pA|
|Cutoff frequency (typ.)||100 MHz|
|Terminal capacitance (typ.)||20 pF|
|Noise equivalent power (typ.)||9.4×10-15 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted|
