Si PIN photodiode
|Photosensitive area||10 × 10 mm|
|Number of elements||1|
|Reverse voltage (max.)||100 V|

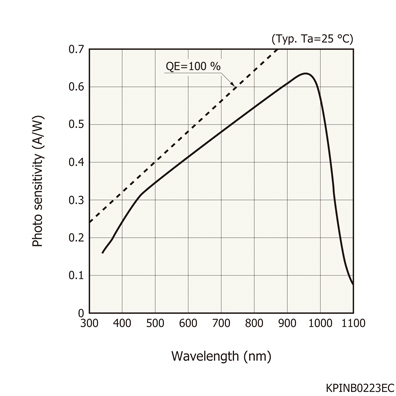

|Spectral response range||340 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.65 A/W|
|Dark current (max.)||10000 pA|
|Cutoff frequency (typ.)||40 MHz|
|Terminal capacitance (typ.)||40 pF|
|Noise equivalent power (typ.)||7.6×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=70 V, Cutoff frequency: VR=70 V, Terminal capacitance: VR=70 V, f=1 MHz, Noise equivalent power: VR=70 V, unless otherwise noted|
