Si PIN photodiode


Large area, high-speed Si PIN photodiode

The S3883 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 300 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.

-Photosensitive area size: φ1.5 mm
-Cutoff frequency: 300 MHz (VR=20 V)
-High reliability: TO-5 metal package

Photosensitive area φ1.5 mm
Number of elements 1
Package Metal
Package category TO-5
Cooling Non-cooled
Reverse voltage (max.) 30 V
Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 840 nm
Photosensitivity (typ.) 0.58 A/W
Dark current (max.) 1000 pA
Cutoff frequency (typ.) 300 MHz
Terminal capacitance (typ.) 6 pF
Noise equivalent power (typ.) 6.7×10-15 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=20 V, Cutoff frequency: VR=20 V, Terminal capacitance: VR=20 V, f=1 MHz, λ=λp, Noise equivalent power: VR=20 V, λ=λp, unless otherwise noted

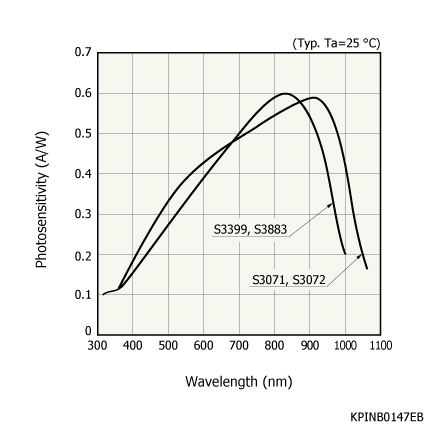

Spectral response

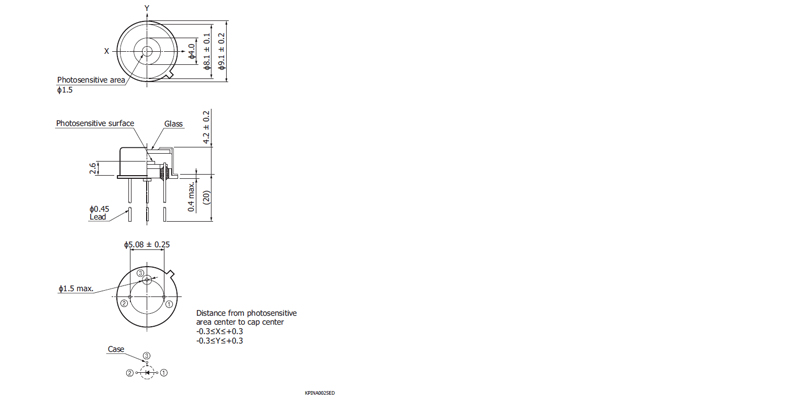

Dimensional outline (unit: mm)
