Si PIN photodiode
The S5107 is a Si PIN photodiode sealed in chip carrier package suitable for surface mount using automated solder reflow techniques. This photodiode has a large active area, making it suitable for spatial light transmission where a wide field-of-view angle is required. Other applications include POS scanners, power meters and analytical instruments.
|Photosensitive area||10 × 10 mm|
|Number of elements||1|
|Package category||Surface mount type|
|Reverse voltage (max.)||30 V|

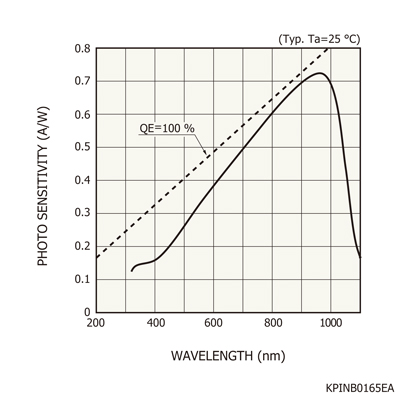

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.72 A/W|
|Dark current (max.)||10000 pA|
|Cutoff frequency (typ.)||10 MHz|
|Terminal capacitance (typ.)||150 pF|
|Noise equivalent power (typ.)||2.4×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted|
