Si PIN photodiode
The S9055 Si PIN photodiode delivers a high-speed response exceeding 1 GHz at low bias voltage (VR=2 V). The low capacitance (less than 1 pF) makes the S9055 ideal for combination with high-speed trans-impedance amplifiers.
|Photosensitive area||φ0.2 mm|
|Number of elements||1|
|Reverse voltage (max.)||20 V|

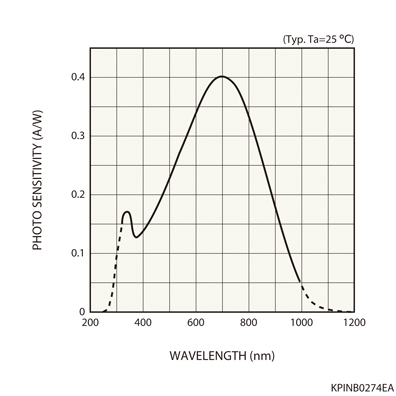

|Spectral response range||320 to 1000 nm|
|Peak sensitivity wavelength (typ.)||700 nm|
|Photosensitivity (typ.)||0.25 A/W|
|Dark current (max.)||100 pA|
|Cutoff frequency (typ.)||1500 MHz|
|Terminal capacitance (typ.)||0.8 pF|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=850 nm, Dark current: VR=2 V, Cutoff frequency: VR=2 V, Terminal capacitance: VR=2 V, f=1 MHz, unless otherwise noted|
