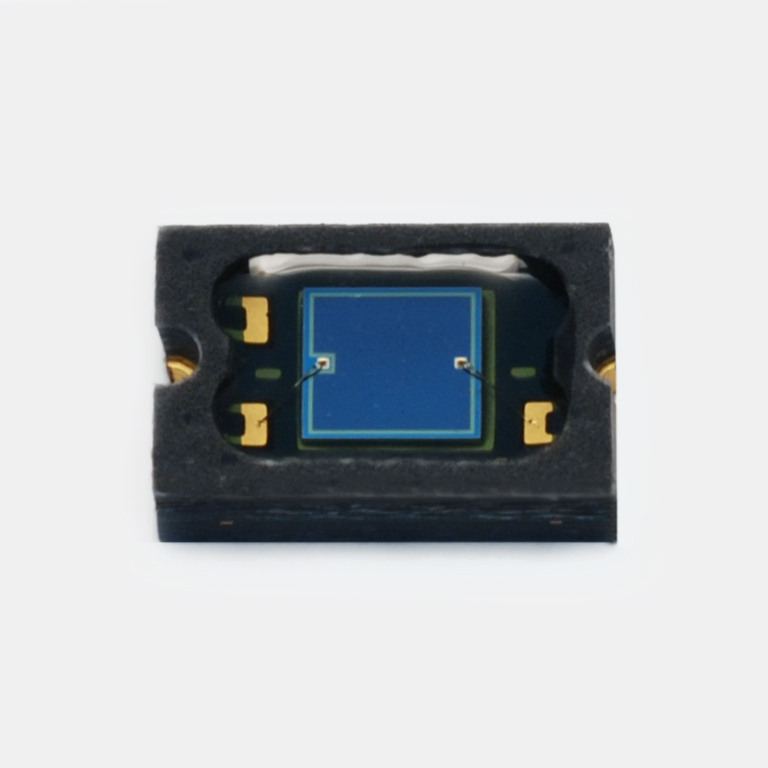

Si photodiode

S9981-01CT

Applicable to lead-free solder reflow and wide temperature range



The S9981-01CT is a photodiode that is applicable to lead-free solder reflow and has an extremely wide operating and storage temperature range (-40 to +125 °C). The small and thin leadless package allows reducing the mount area on a printed circuit board.


Features
-Suitable for lead-free solder reflow
-Surface mount type, small and thin leadless package
-Operating/storage temperature: -40 to +125 °C
-Photosensitive area: 1.3 × 1.3 mm
-High sensitivity: 0.65 A/W (λ=960 nm)



Photosensitive area 1.3 × 1.3 mm
Number of elements 1
Package Glass epoxy
Package category Surface mount type
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.65 A/W
Dark current (max.) 1000 pA
Rise time (typ.) 0.5 μs
Terminal capacitance (typ.) 200 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==5 V, Terminal capacitance: VR=0 V, f=1 MHz, unless otherwise noted

Spectral response

Dimensional outline (unit: mm)
