D-type socket assembly

E1198-22

For 51mm, 76mm, 127mm dia. Head-on PMT

Applicable PMT 51 mm, 76 mm, 127 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 2200 V
[Max. Rating] Supply Voltage 2000 V
[Max. Rating] Voltage Divider Current 0.5 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 3.97 MΩ
Max. Linear Output in DC Mode 25 μA (at 2000 V)

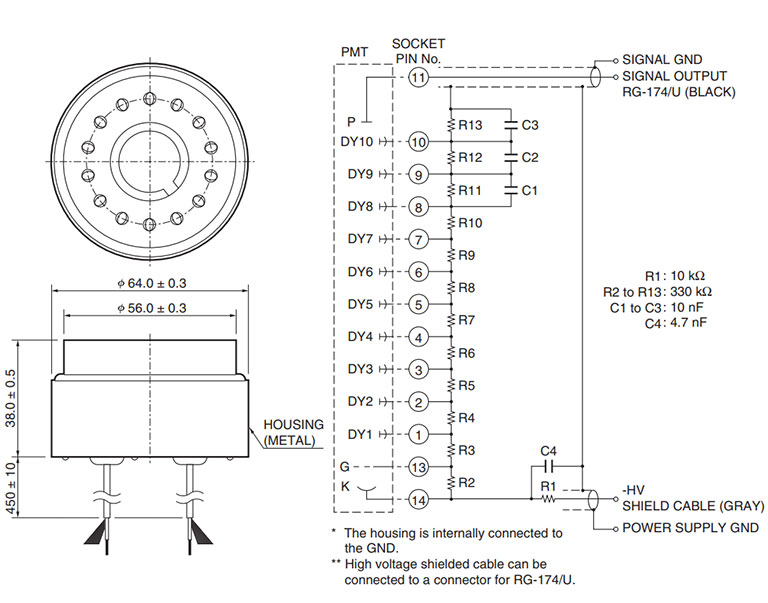

Dimensional outline (Unit: mm)
