DA-type socket assembly
C16138-03
The C16138 series is DA type socket assemblies designed for the metal package photomultiplier tube R9880U. A voltage-divider circuit and an amplifier are built into the same package.
This product can convert the photomultiplier tube’s current signal, which is weak and high impedance, into the voltage signal with low impedance.
It is compact and you can select products from the wide range of frequency band width (DC to 200 kHz, 2 MHz or 20 MHz) to meet your application.
Specifications
| Applicable PMT | R9880U series |
|---|---|
| [Max. Rating] Supply Voltage for Amplifier | +/-5.5 V |
| [Max. Rating] Supply Voltage for Divider | -1100 V |
| [Max. Rating] Operating Ambient Temperature | 0 ℃ to +40 ℃ |
| [Max. Rating] Storage Temperature | -15 ℃ to +60 ℃ |
| Frequency Bandwidth (-3 dB) | DC to 20 MHz |
| Current to Voltage Conversion Factor | 0.06 V/μA (Load resistance 10 kΩ) / 0.03 V/μA (Load resistance 50 Ω) |
| Max. Output Signal Voltage | +3.5 V (Load resistance 10 kΩ) / +1.6 V (Load resistance 50 Ω) |
| Offset Voltage Max. | +/-2 mV (Load resistance 10 kΩ) / +/-1 mV (Load resistance 50 Ω) |
| Output Noise Voltage (rms) Typ. | 1 mV |
| Supply Voltage for Amplifier | +/-5 V |
| Recommended Supply Voltage for Divider | ‐500 V to -1000 V |
| Divider Circuit Current Typ. | 289 μA (at -1000 V) |
| Weight Typ. | 4.4 g |

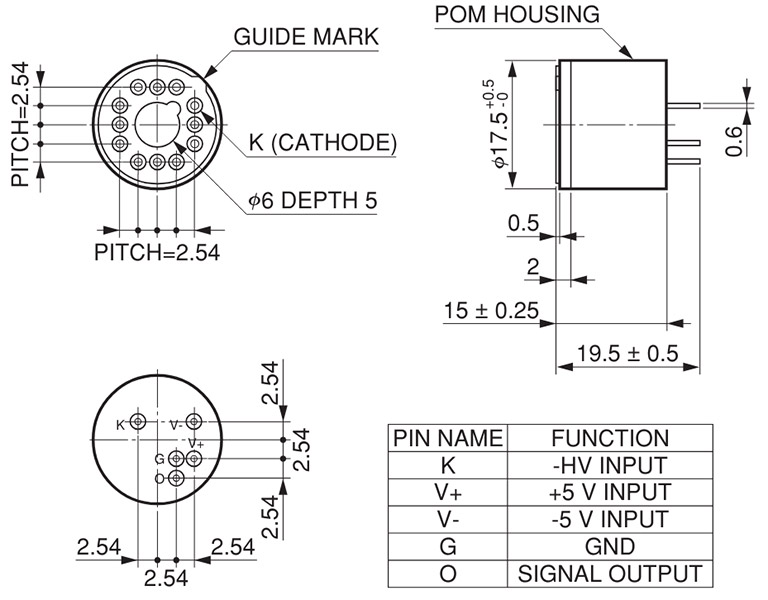

Dimensional outline (Unit mm)
