DAP-type socket assembly

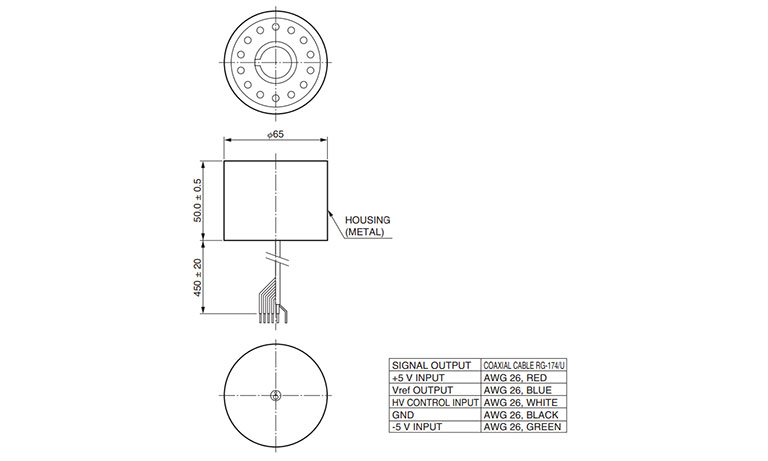

The C12843-02 is a high voltage power supply socket assembly incorporating transimpedance amplifier for head-on photomultiplier tubes with 10-stage dynodes. Using Cockcroft-Walton circuit, it enables low power consumption and superior output linearity by only supplying +5 V and 0 V to +1.5 V for high voltage adjustments.
|Type||High Voltage Power Supply Socket Assembly with Transimpedance Amplifier (DAP type)|
|Applicable PMT||10-stage dynode Head-on type|
|Input Voltage||±5±0.5 V|
|Max. Input Voltage||±6 V|
|Max. Input Current||+6.5 / -3.5 mA|
|[PMT] Linear DC Output Current Min.||40 (Load resistance=10 kΩ) μA|
|[HV Power Supply] Output Voltage Range||0 to -1500 V|
|[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ.||±0.01 %|
|[HV Power Supply] Output Voltage Control||0 V to +1.5 V or external 10 kΩpotentiometer|
|[HV Power Supply] Settling Time||10 s|
|[HV Power Supply] Temperature Coefficient Typ.||±0.01 %/℃|
|[Amp] Frequency Bandwidth (-3 db)||DC to 200 kHz|
|[Amp] Current to Voltage Conversion Factor||0.1 (Load resistance=10 kΩ) V/uA|
|[Amp] Max. Output Signal Voltage||+4 (Load resistance=10 kΩ) V|
|[Amp] Output Signal Offset Voltage Typ.||±1 mV|
|[Amp] Output Signal Ripple/Noise||1 mVp-p (Max.)|
|Operating Ambient Temperature||0 to +50 ℃|
|Storage Temperature||-15 to +60 ℃|
|Weight Typ.||180 ｇ|
