HV power supply module
The C10940 series is an on-board type high voltage power supply module, especially designed for photomultiplier tubes.
|Input Voltage||5 V|
|Input Current (with no load) Typ.||60 mA|
|Input Current (with full load) Typ.||230 mA|
|Max. Output Voltage||-1200 V|
|Max. Output Current||0.6 mA|
|Specification Guaranteed Output Voltage Range||-200 to -1200 V|
|Line Regulation||±0.02(against ±0.5V input change) %|
|Load Regulation||±0.01 %|
|Temperature Coefficient||±0.01 %/℃|
|Operating Ambient Temperature||0 to +50 ℃|
|Operating Ambient Humidity||Below 80 %|
|Storage Temperature||-20 to +60 ℃|
|Storage Humidity||Below 80 %|

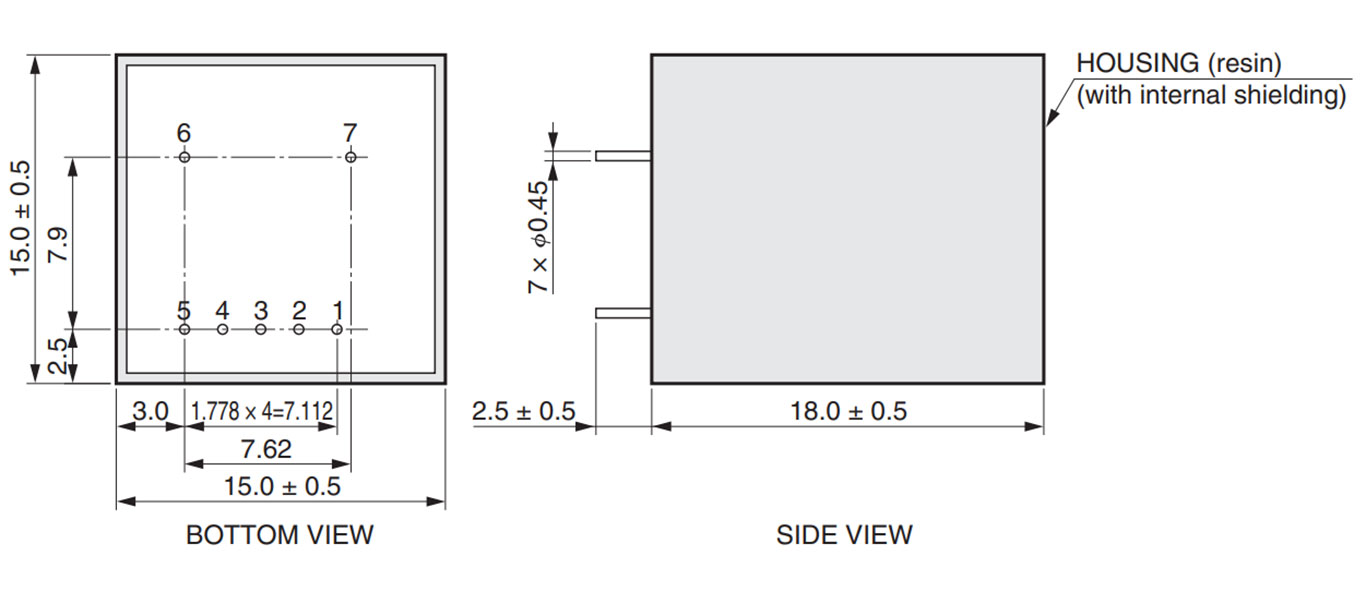

|Dimensions (W x H x D)||15 x 15 x 18 mm|
