HV power supply module

C11152-50

Compact PC-board mountable high voltage power supply, especially designed for photomultiplier tubes.

Specifications

Type Compact type
Input Voltage 15 V
Input Current (with no load) Typ. 45 mA
Input Current (with full load) Typ. 180 mA
Max. Output Voltage 1500 V
Max. Output Current 1 mA
Specification Guaranteed Output Voltage Range +240 V to +1500 V
Line Regulation +/-0.01 % (against +/-1 V input change)
Load Regulation +/-0.01 %
Ripple/Noise 5 mV (>5kHz), 8 mV (<=5kHz)
Temperature Coefficient +/-0.005 %/℃
Operating Ambient Temperature 0 ℃ to +50 ℃
Operating Ambient Humidity Below 80 %
Storage Temperature -20 ℃ to +60 ℃
Storage Humidity Below 80 %

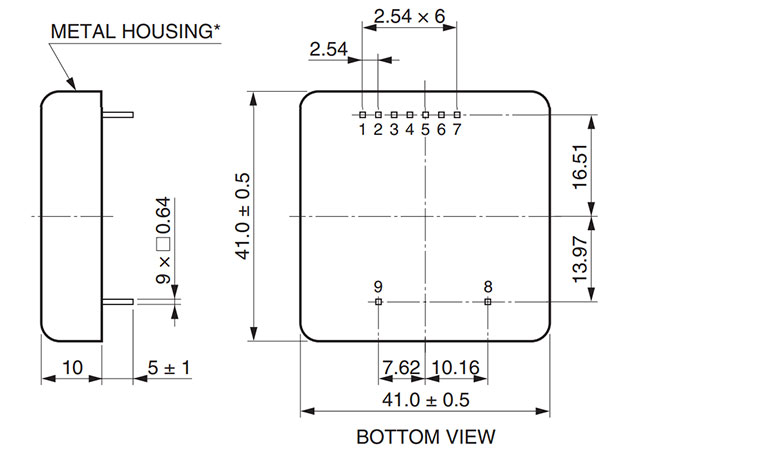

Dimensions (W x H x D) 41 mm x 10 mm x 41 mm
Weight 38 g
