HV power supply module
C12766 series is a compact high voltage power supply module, especially designed for photomultiplier tubes. The design of high current output can offer to drive multiple photomultiplier tubes.
|Input Voltage||24 V|
|Input Current (with no load) Typ.||65 mA|
|Input Current (with full load) Typ.||2100 mA|
|Max. Output Voltage||1500 V|
|Max. Output Current||30 mA|
|Specification Guaranteed Output Voltage Range||+240 to +1500 V|
|Line Regulation||±0.01 (against ±1.2 V input change) %|
|Load Regulation||±0.01 %|
|Temperature Coefficient||±0.01 %/℃|
|Operating Ambient Temperature||0 to +50 ℃|
|Operating Ambient Humidity||Below 85 %|
|Storage Temperature||-20 to +60 ℃|
|Storage Humidity||Below 85 %|

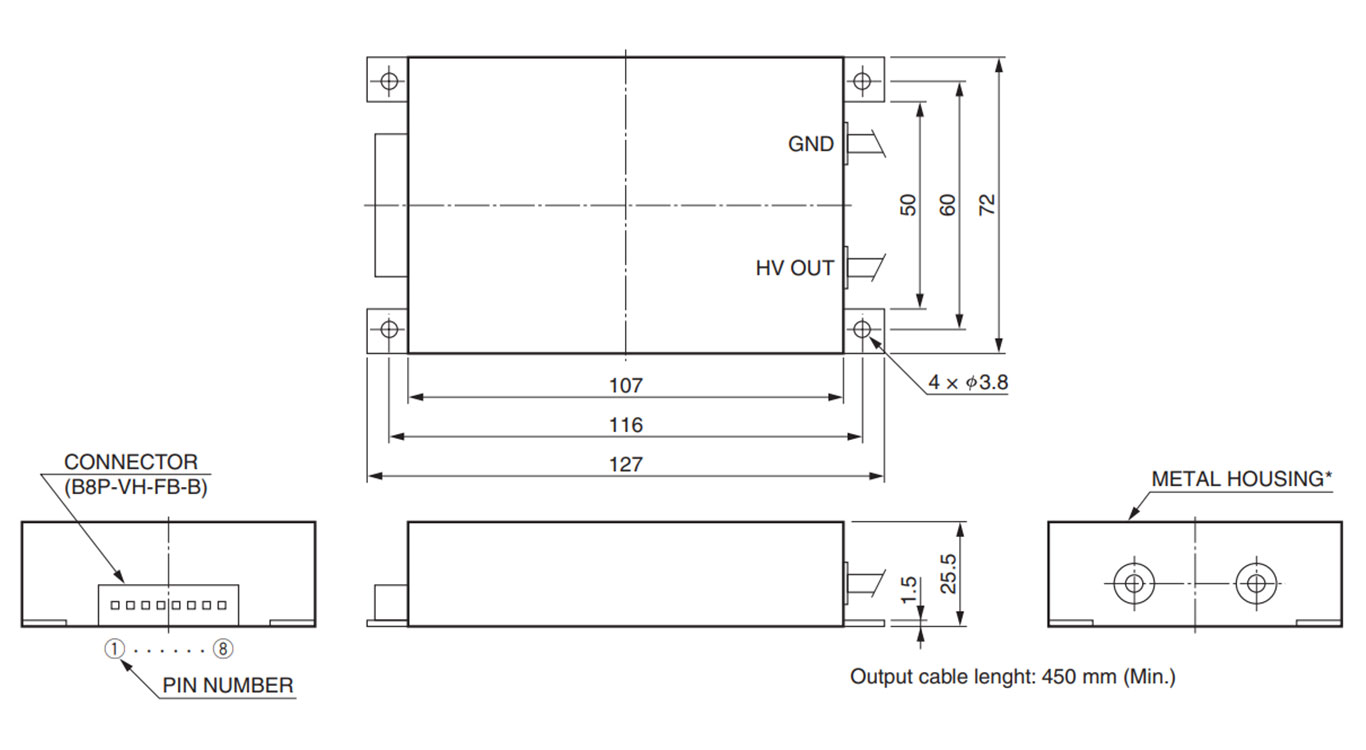

|Dimensions (W x H x D)||107 x 25.5 x 72 mm|
