HV power supply module

C13887-12

The C13887-12 is built-in type high-voltage power supply modules designed for achieving compact and high efficiency. The internal circuit has achieved high-performance and low consumption. Furthermore, various protection functions are mounted on them.

Features

  • High output power (-2.5 kV / 15 mA)
  • High efficiency
  • Compact and lightweight
  • High voltage / Current monitor output
  • Low ripple / Nioise

Specifications

Type Compact type
Input Voltage +24 V +/-1.2 V
Input Current (with no load) Typ. 77 mA
Input Current (with full load) Typ. 1750 mA
Max. Output Voltage -2500 V
Max. Output Current 15 mA
Specification Guaranteed Output Voltage Range -400 V to -2500 V
Line Regulation +/-0.01 % (against +/-1.2 V input change)
Load Regulation +/-0.01 %
Ripple/Noise 125 mV
Temperature Coefficient +/-0.01 %/℃
Operating Ambient Temperature 0 ℃ to +50 ℃
Operating Ambient Humidity Below 85 %RH
Storage Temperature -20 ℃ to +60 ℃
Storage Humidity Below 85 %RH
Dimensions (W x H x D) 148 mm x 25.5 mm x 72 mm
Weight 315 g

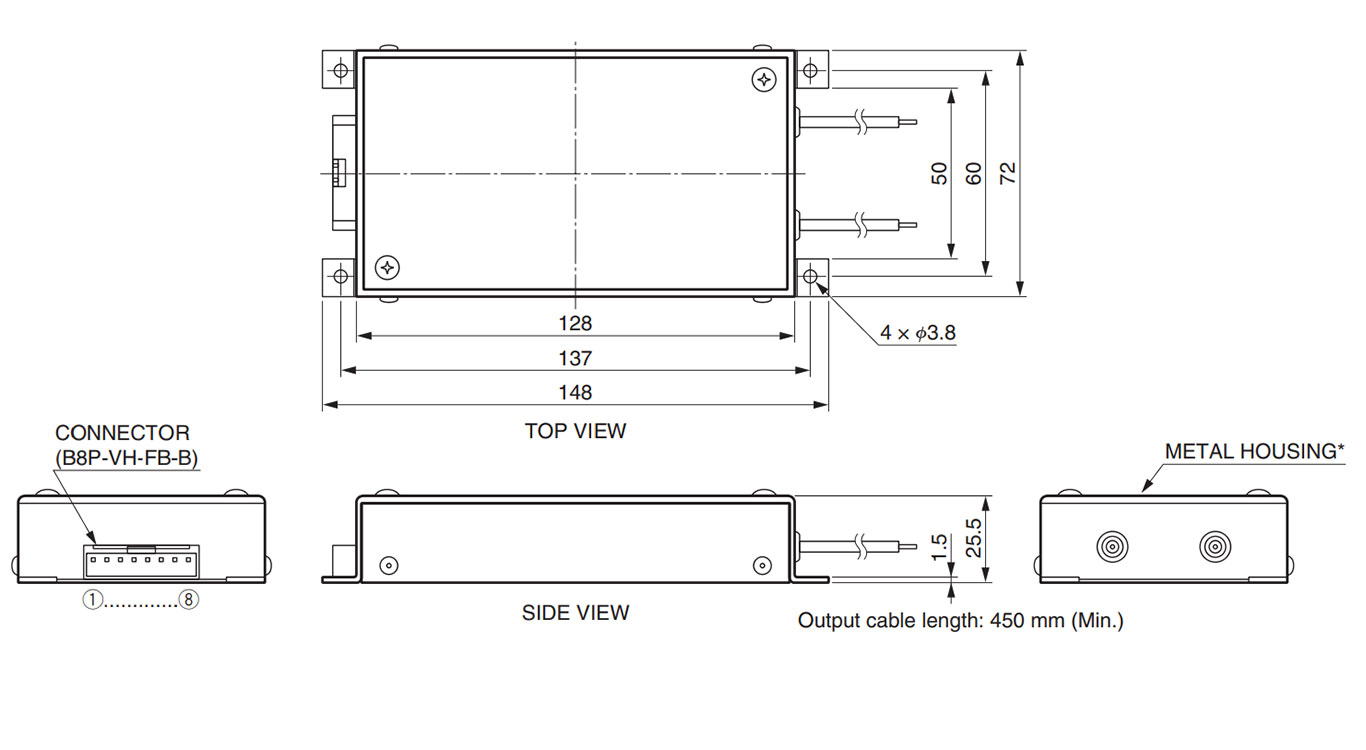

Dimensional outline (Unit: mm)

Cable
Black:High voltage GND
   (Irax, AWG16, outer diameter 3.1 mm)
Red:High voltage output
   (cross-linked polyethyiene, AWG22, outer diameter 3.0 mm)

Accessories (for power input connector)
① ST HSG VHR-8N
② JST CNT BVH-21T-P1.1 (8 pcs)

* The housing is internally connected to pin ② (GND).
