HV power supply module
The C13890-15 is a compact PC-board mountable high voltage power supply, especially designed for photomultiplier tubes. The design offers better performance.
UL recognized (UL60601-1, File No. E470768)
|Input Voltage||+11 V to +16 V|
|Input Current (with no load) Typ.||35 mA|
|Input Current (with full load) Typ.||125 mA|
|Max. Output Voltage||-1250 V|
|Max. Output Current||0.6 mA|
|Specification Guaranteed Output Voltage Range||-200 V to -1250 V|
|Line Regulation||+/-0.01 % (against +11 V to +16 V input change)|
|Load Regulation||+/- 0.01 %|
|Temperature Coefficient||+/-0.01 %/℃|
|Operating Ambient Temperature||-10 ℃ to +60 ℃|
|Operating Ambient Humidity||Below 80 %|
|Storage Temperature||-20 ℃ to +70 ℃|
|Storage Humidity||Below 80 %|

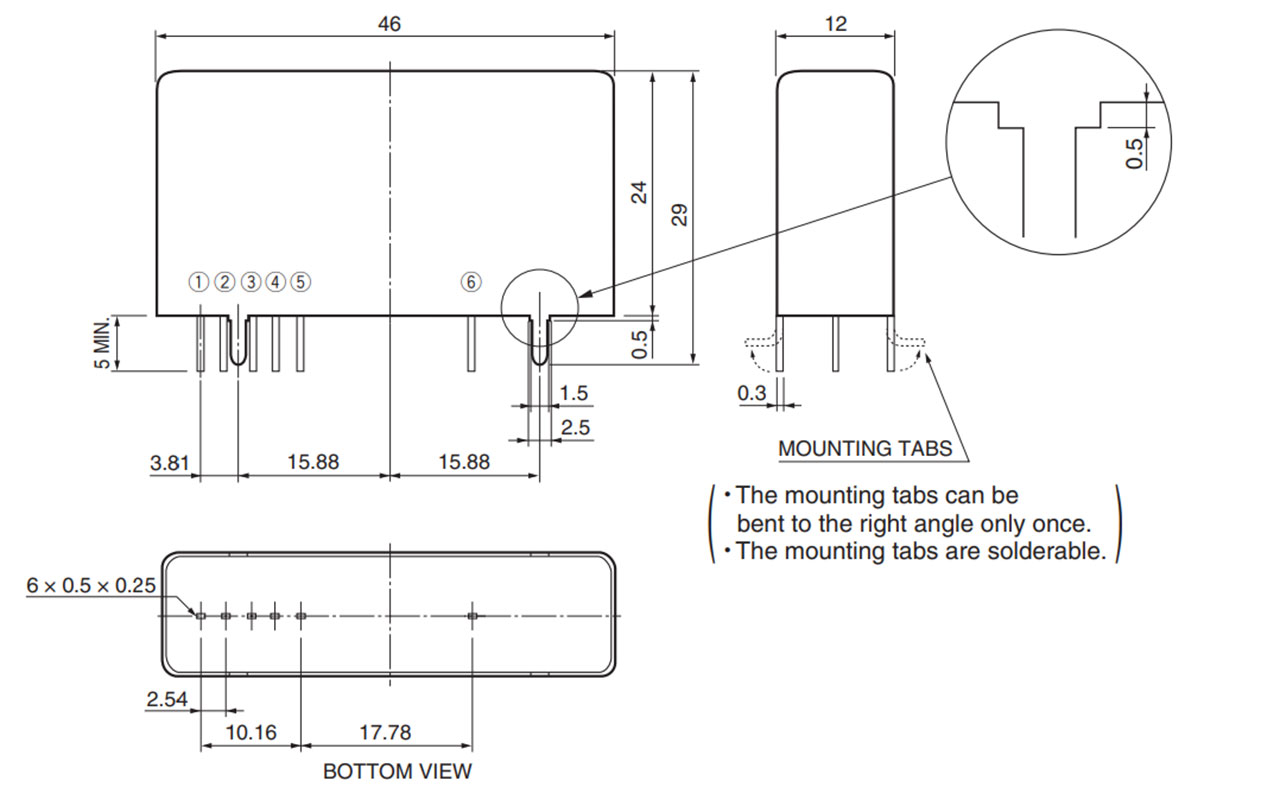

|Dimensions (W x H x D)||46 mm x 24 mm x 12 mm|
