HV power supply module
C9619 is a compact PC-board mountable high voltage power supply module, especially designed for photomultiplier tubes. Variable Output Voltage Range : 0 V to -2000 V, Specification Guaranteed Output Voltage Range : -320 V to -2000 V.
|Input Voltage||15 V|
|Input Current (with no load) Typ.||120 mA|
|Input Current (with full load) Typ.||380 mA|
|Max. Output Voltage||-2000 V|
|Max. Output Current||2 mA|
|Specification Guaranteed Output Voltage Range||-320 V to -2000 V|
|Line Regulation||+/-0.01 % (against +/-1 V input change)|
|Load Regulation||+/-0.01 %|
|Temperature Coefficient||+/-0.01 %/℃|
|Operating Ambient Temperature||0 ℃ to +40 ℃|
|Operating Ambient Humidity||Below 85 %|
|Storage Temperature||-20 ℃ to +60 ℃|
|Storage Humidity||Below 90 %|

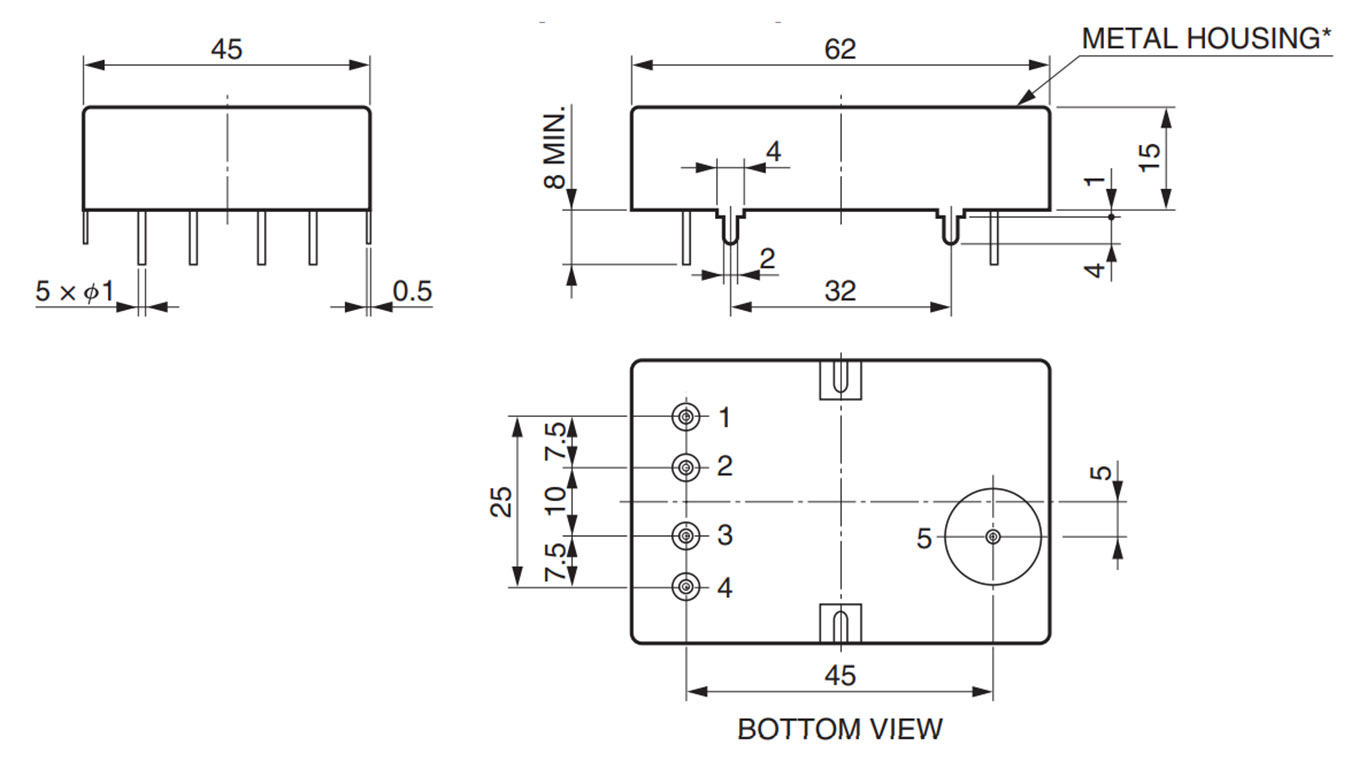

|Dimensions (W x H x D)||62 mm x 15 mm x 45 mm|
