Photon detection unit

C17056-01

The C17056-01 is a photon detection unit designed to make measuring low-level light at photon counting levels smooth and easy. With this unit, photon counting measurements require no special setups and are quick and simple.

All the user does is place a sample in the sample holder and enter commands from a measurement program. This unit is ideal for measuring delayed fluorescence emitted from plants and algae.



Left: C17056-01 + Excitation light source unit A9860-01 + Test tube holder A9861-01

Right: C17056-01 + Excitation light source unit A9860-01 + Sample holder unit A9861-02

Applications

  • Delayed fluorescence measurements
  • Environmental response evaluations
  • Stress response evaluations

Features

  • No complicated setup required
    • This unit incorporates a photomultiplier tube (PMT), a power supply for working the PMT, a pulse shaper for detecting sigle photon outputs, and a pulse counter. Also, since the compatible test tube holder and sample holder (sold separately) for this unit have an excellent light-shielding structure.
  • Detectable wavelengths up to 850 nm
  • Excitation light source with 3 different wavelengths
    • This unit includes an excitation light source that emits light at 680 nm, 700 nm and 720 nm. The wavelength can be switched and the light intensity can be adjusted programmatically.
  • Samples can be measured while in test tubes or petri dishes
    • Two types of sample holders are available: one type holds 25 mm-diameter, 80 mm-long test tubes, and the other is a drawer type accommodating 60 mm-diameter petri dishes.
  • Comes with a measurement program

Specifications

C17056-01-A1*(with AC adaptor for Japan) * A2: For North America, A3: For Europe

Parameter
C17056-01 + A9860-01 + A9861-01 (test tube type)
C17056-01 + A9860-01 + A9861-02 (drawer type)
Unit
Measurement section Detectable wavelength range
650 to 850
nm
Dark count
7000 Max.
s-1
Effective photocathode size
22 dia.
mm
Detection method
Photon counting method
Sampling gate time
0.001 to 1 (x10 steps)
s
Maximum count rate
3 × 106
s-1
Trigger mode
Software / External trigger (TTL rise edge)
Shutter open/close speed
0.5 Min.
s
Excitation light source Wavelength of excitation light
680 / 700 / 720
nm
Excitation light intensity control
1000
levels
Sample compartment Sample size that can be placed



Test tube 25 dia. × 80



W60 × D60 × H25
mm
Distance to photocathode surface
41.5
50.6
mm
Ratings Input voltage
+7 (supplied from accessory AC adapter)
V
Operating ambient temperature
+5 to +40
Operating ambient humidity
Below 80 (no condensation)
% RH
Others Protection function
ON: Shutter won’t open when sample compartment is open.
Weight
1.4
1.3
kg
Support OS
Windows®10 Pro / 11 Pro
Interface
USB interface
Measurement program functions
Warm-up operation, sensitivity calibration, count monitor, measurement sequence setting, data save
Accessories
CD-ROM (Measurement program, Manual), USB cable, trigger cable, AC adapter

NOTE: ①When combined with filter. Spectral response range is from 300 nm to 850 nm when no filter is used.

②Distance from center of test tube to photocathode surface ③Distance from bottom of sample holder unit to photocathode surface

Dimensional outlines (Unit: mm)

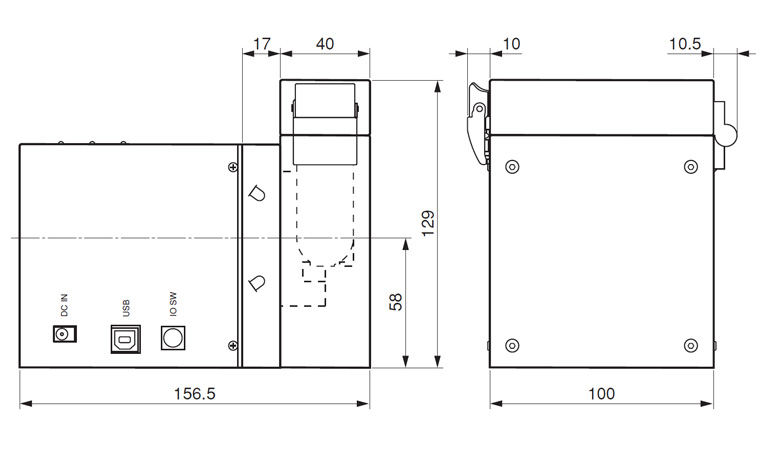

C17056-01 + A9860-01 + A9861-01

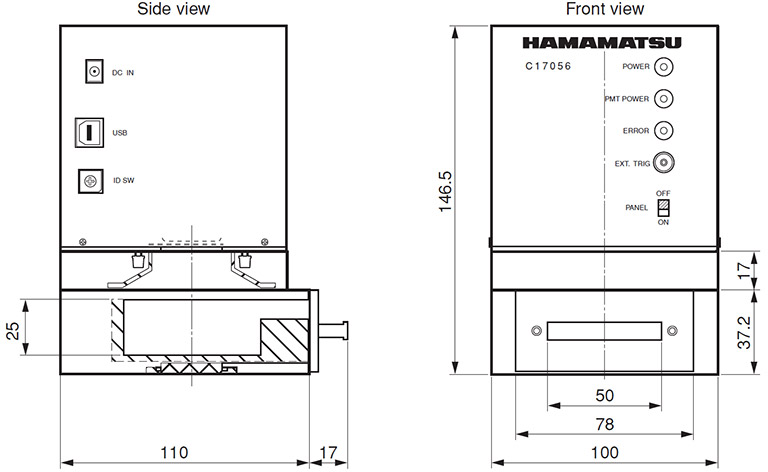

C17056-01 + A9860-01 + A9861-02
