Hybrid photo detector


The HPD series are high-speed responce photodetectors with a built-in photocathode and AD(Avalanche diode).

The R10467U-42 is extended red-GaAsP photocathode HPD with spectral response range from 300 nm to 840 nm.


 Parameter R10467U-42 Unit
Spectral response 300 to 840 nm
Photocathode Extended red-GaAsP
Window material Borosilicate glass
Window type Flat
Effective area φ3 mm
Rating Photocathode voltage Max. -8500 V
Avalanche diode (AD) reverse bias voltage Max. Vb -10 V
Average photocathode current Max. 200 pA
Quantum efficiency (at 660 nm) Typ. 25 %
AD leakage current Typ. 150 pA
Gain Typ. 1.2 x 105
Time response Rise time Typ. 400 ps
Fall time Typ. 400 ps
Width Typ. 600 ps
T.T.S (Transit Time Spread) (FWHM) 130 ps
Operating ambient temperature +15 to +35
Storage temperature 0 to +40

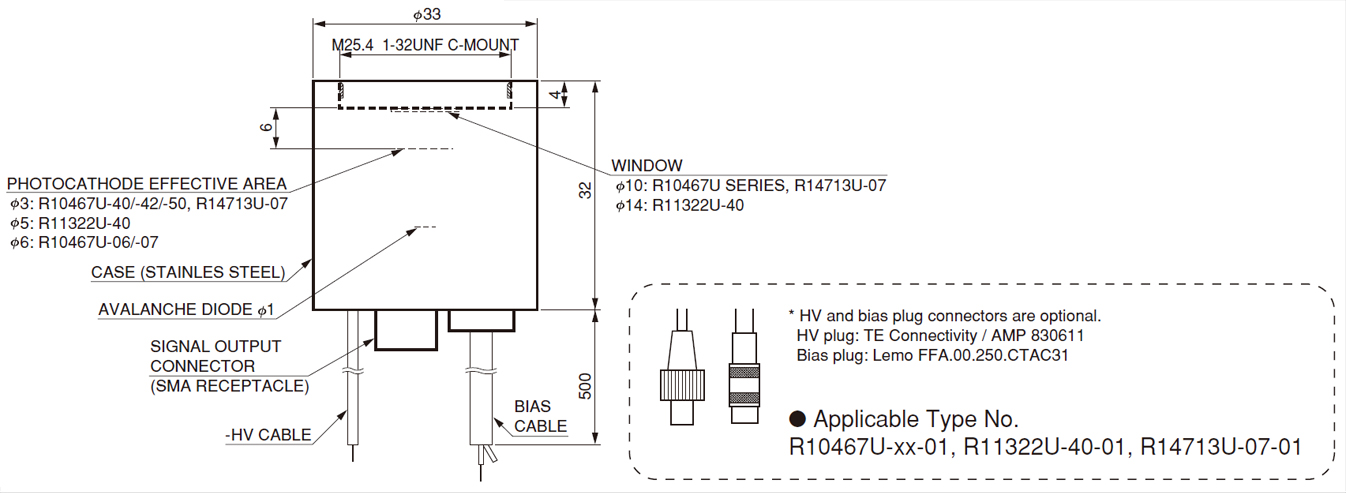

Dimensional outlines (Unit mm)
