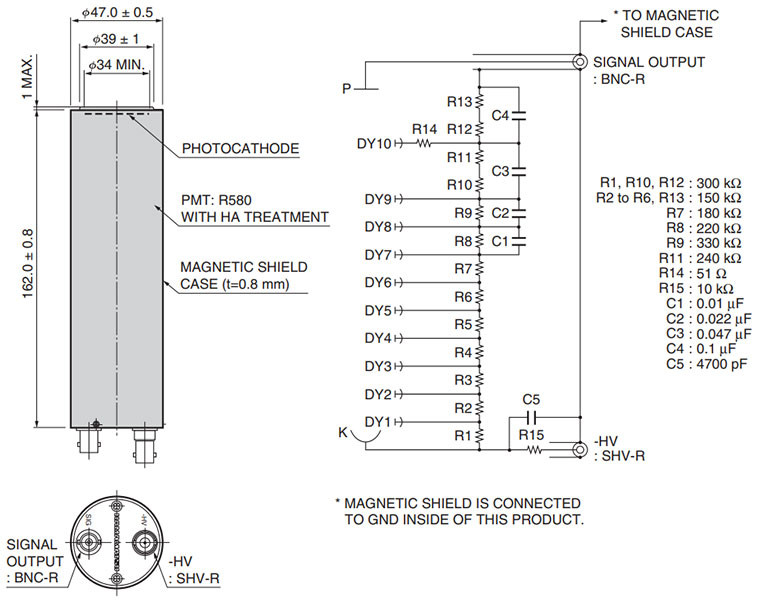

Photomultiplier tube assembly
|Assembly Size||Dia.47 mm|
|PMT Tube Size||38 (1-1/2) mm|
|Built-in PMT Type No.||R580|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.34 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||-1750 V|
|[Max. Rating] Average Anode Current||0.63 mA|
|Anode to Cathode Supply Voltage||-1500 V|
|[Cathode] Luminous Sensitivity Typ.||95 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||11|
|[Anode] Luminous Sensitivity Typ.||75 A/lm|
|[Anode] Gain Typ.||7.9 x 105|
|[Anode] Dark Current (after 30min.) Typ.||2 nA|
|[Anode] Dark Current (after 30min.) Max.||15 nA|
|[Time Response] Rise Time Typ.||2.7 ns|
|[Time Response] Transit Time Typ.||40 ns|
|[Time Response] Transit Time Spread Typ.||4.5 ns|
|[Anode] Pulse Linearity (2% deviation)||150 mA|
|[Anode] Pulse Linearity (5% deviation)||200 mA|
