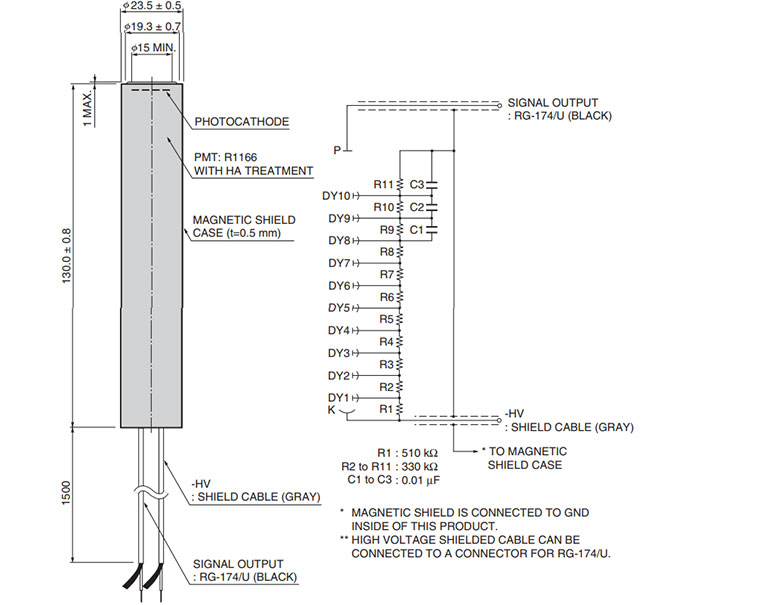

Photomultiplier tube assembly
|Assembly Size||Dia.23.5 mm|
|PMT Tube Size||19 (3/4) mm|
|Built-in PMT Type No.||R1166|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.15 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||-1250 V|
|[Max. Rating] Average Anode Current||0.33 mA|
|Anode to Cathode Supply Voltage||-1000 V|
|[Cathode] Luminous Sensitivity Typ.||110 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||10.5|
|[Anode] Luminous Sensitivity Typ.||110 A/lm|
|[Anode] Gain Typ.||1.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||1 nA|
|[Anode] Dark Current (after 30min.) Max.||5 nA|
|[Time Response] Rise Time Typ.||2.5 ns|
|[Time Response] Transit Time Typ.||27 ns|
|[Time Response] Transit Time Spread Typ.||2.8 ns|
|[Anode] Pulse Linearity (2% deviation)||4 mA|
|[Anode] Pulse Linearity (5% deviation)||7 mA|
