Photomultiplier tube module
The H11461 series photomultiplier tube modules consist of a 28-mm (1-1/8") diameter side-on photomultiplier tube and a high-voltage power supply. These sideon photomultiplier tubes have long been used for spectroscopic applications and provide high gain and high sensitivity. Six types of photomultiplier tubes are provided as standard lineups to meet various needs for spectral response range. The H11461P-01 and H11461P-11 are selected as low dark count types ideal for photon counting and low-light-level measurement.
|Photocathode Area Shape||Square|
|Photocathode Area Size||4 x 20 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||900 nm|
|Wavelength (Peak)||400 nm|

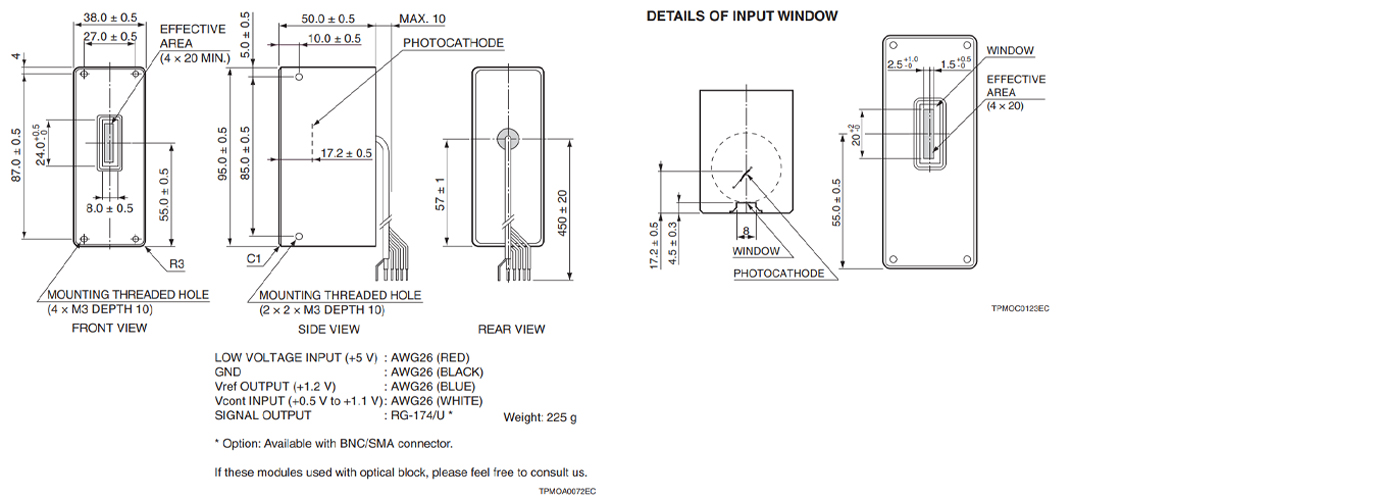

|Dimension (W x H x D)||38.0 x 95.0 x 50.0 mm|
|Input Voltage||+4.5 to +5.5 V|
|Max. Input Voltage||6 V|
|Max. Input Current||3.5 mA|
|Max. Output Signal Current||100 μA|
|Max. Control Voltage||1.2 V|
|Recommended Control Voltage Adjustment Range||+0.5 to +1.1 V|
|[Cathode] Luminous Sensitivity Min.||140 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||250 μA/lm|
|[Cathode] Red/White Ratio Typ.||0.3|
|[Cathode] Radiant Sensitivity Typ.||74 mA/W|
|[Anode] Luminous Sensitivity Min||400 A/lm|
|[Anode] Luminous Sensitivity Typ.||2500 A/lm|
|[Anode] Radiant Sensitivity Typ.||7.4 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||3 nA|
|[Anode] Dark Current (after 30min.) Max.||50 nA|
|[Time Response] Rise Time Typ.||2.2 ns|
|Ripple Noise (peak to peak) Max.||0.3 mV|
|Settling Time Max.||14 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
