Photomultiplier tube module
H11900-04
The H11900 and H11901 series are photomultiplier tube modules containing a metal package PMT and a high-voltage power supply circuit. The built-in PMT uses a metal package with the same diameter as a TO-8 metal package used for semiconductor photodetectors. Despite the small size nearly equal to photodiodes, this PMT provides high gain, wide dynamic range, and high-speed response. Seven types of products are available with different sensitivity characteristics such as spectral response ranges. "P" type with low dark count selected for photon counting measurement is also available. The H11900 series are pin output type, while the H11901 series are flexible cable output type.
+5V input type H10720 / H10721 series are available.
Specifications
| Photocathode Area Shape | Round |
|---|---|
| Photocathode Area Size | Dia.8 mm |
| Wavelength (Short) | 185 nm |
| Wavelength (Long) | 870 nm |
| Wavelength (Peak) | 400 nm |
| Dimension (W x H x D) | 50.0 mm x 18.0 mm x 25.0 mm |
| Input Voltage | +11.5 V to +15.5 V |
| Max. Input Voltage | 18 V |
| Max. Input Current | 12 mA |
| Max. Output Signal Current | 100 μA |
| Max. Control Voltage | +1.1 V (Input impedance 30 kΩ) |
| Recommended Control Voltage Adjustment Range | +0.5 V to +1.1 V (Input impedance 30 kΩ) |
| [Cathode] Luminous Sensitivity Min. | 100 μA/lm |
| [Cathode] Luminous Sensitivity Typ. | 200 μA/lm |
| [Cathode] Red/White Ratio Typ. | 0.2 |
| [Cathode] Radiant Sensitivity Typ. | 77 mA/W |
| [Anode] Luminous Sensitivity Min | 100 A/lm |
| [Anode] Luminous Sensitivity Typ. | 400 A/lm |
| [Anode] Radiant Sensitivity Typ. | 1.5 x 105 A/W |
| [Anode] Dark Current (after 30min.) Typ. | 1 nA |
| [Anode] Dark Current (after 30min.) Max. | 10 nA |
| [Time Response] Rise Time Typ. | 0.57 ns |
| Ripple Noise (peak to peak) Max. | 0.6 mV |
| Settling Time Max. | 0.2 s |
| Operating Ambient Temperature | +5 ℃ to +50 ℃ |
| Storage Temperature | -20 ℃ to +50 ℃ |
| Weight | 42 g |

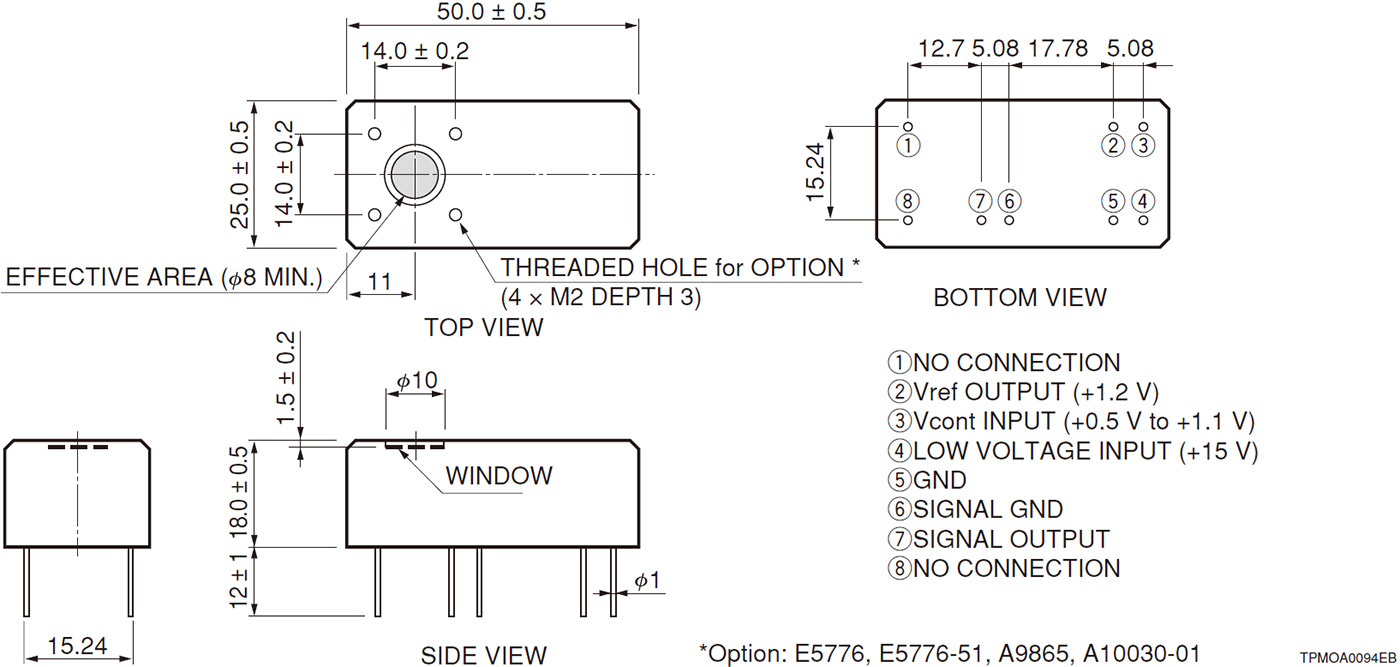

Dimensional outline (Unit: mm)
