Photomultiplier tube module


The H12056 series is a photomultiplier tube module containing a metal package PMT, shutter circuit and a high-voltage power supply circuit. This module has shutter function to avert the PMT from excessive light without switching OFF the PMT voltage completely like the case of opening / closing machine to change the measurement samples. Four types of photocathodes are available, including a super bialkali photocathode that has higher sensitivity than conventional bialkali photocathodes, an ultra bialkali photocathode that offers even higher sensitivity, a multialkali photocathode with sensitivity extending to the near infrared region, and a red sensitivity enhanced multialkali photocathode. Hamamatsu also provides

Photocathode Area Shape Round
Photocathode Area Size Dia.8 mm
Wavelength (Short) 230 nm
Wavelength (Long) 870 nm
Wavelength (Peak) 400 nm
Dimension (W x H x D) 51.0 mm x 30.0 mm x 25.0 mm
Input Voltage +4.5 V to +5.5 V
Max. Input Voltage 6 V
Max. Input Current 10 mA
Max. Output Signal Current 100 μA
Max. Control Voltage +1.1 V (Input impedance 1 MΩ)
Recommended Control Voltage Adjustment Range +0.5 V to +1.1 V (Input impedance 1 MΩ)
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 200 μA/lm
[Cathode] Red/White Ratio Typ. 0.2
[Cathode] Radiant Sensitivity Typ. 77 mA/W
[Anode] Luminous Sensitivity Min 100 A/lm
[Anode] Luminous Sensitivity Typ. 400 A/lm
[Anode] Radiant Sensitivity Typ. 1.5 x 105 A/W
[Anode] Dark Current (after 30min.) Typ. 1 nA
[Anode] Dark Current (after 30min.) Max. 10 nA
[Anode] P Type Dark Count Typ. 600 s-1
[Anode] P Type Dark Count Max. 1000 s-1
[Time Response] Rise Time Typ. 0.57 ns
Ripple Noise (peak to peak) Max. 0.6 mV
Settling Time Max. 10 s
Operating Ambient Temperature +5 ℃ to +50 ℃
Storage Temperature -20 ℃ to +50 ℃
Weight 70 g

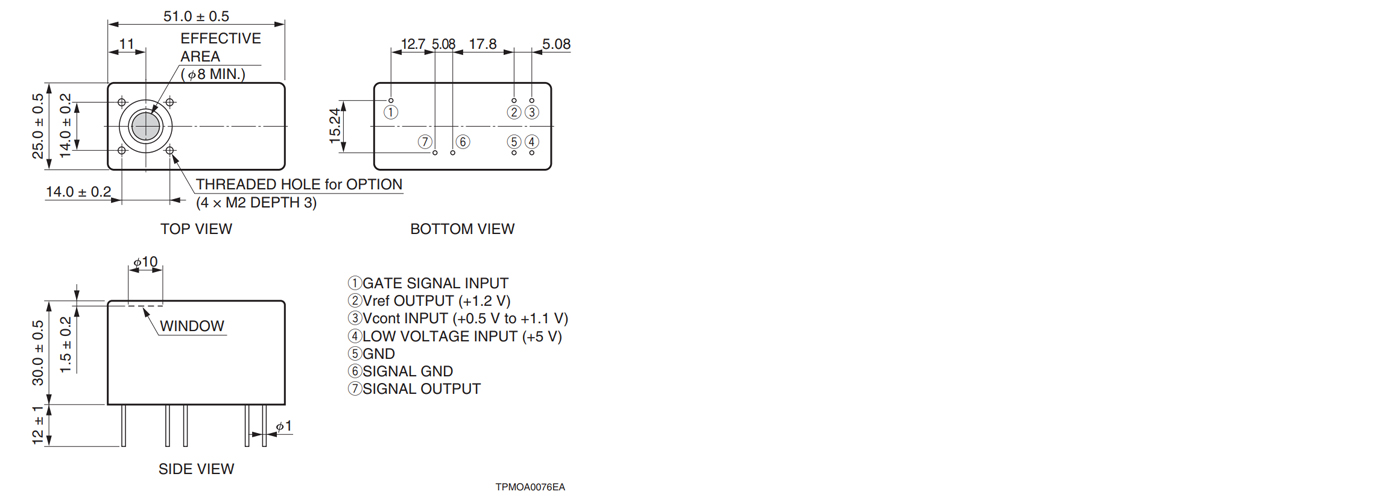

Dimensional outline (Unit: mm)
