Photomultiplier tube module
H15620-45
The H15620 series is NIR-PMT module using a compact NIR-PMT(near infrared photomultiplier tube) developed by our advanced photocathode technology.
| Photocathode Area Shape | Round |
|---|---|
| Photocathode Area Size | Φ1.6 mm |
| Wavelength (Short) | 950 nm |
| Wavelength (Long) | 1400 nm |
| Wavelength (Peak) | 1300 nm |
| Dimension (W x H x D) | 80 mm x 60 mm x 126 mm |
| Input Voltage | +4.5 to +5.5 V |
| Max. Input Voltage | +5.5 V |
| Max. Input Current | +100 mA |
| Max. Output Signal Current | 1 µA |
| Max. Control Voltage | +0.9 V |
| Recommended Control Voltage Adjustment Range | +0.5 to +0.8 V |
| [Cathode] Radiant Sensitivity Typ. | 21 mA/W |
| [Anode] Radiant Sensitivity Typ. | 2.1 x 104 A/W |
| [Anode] Dark Current Typ. | 13 nA (PMT temperature -30 ℃) |
| [Anode] Dark Current Max. | 130 nA (PMT temperature -30 ℃) |
| [Time Response] Rise Time Typ. | 0.9 ns |
| Ripple Noise (peak to peak) Max. | 0.6 mV |
| Settling Time Max. | 0.2 s |
| Operating Ambient Temperature | +5 to +35 ℃ |
| Storage Temperature | -20 to +50 ℃ |
| Weight | 720 g |
Cooling specifications
| Parameter | H15620 series | Unit |
|---|---|---|
| Cooling method | Thermoelectric cooling | - |
| Max. cooling temperature (ΔT) | 65 | ℃ |
| Time to reach Max. cooling temperature | Approx. 20 | min |

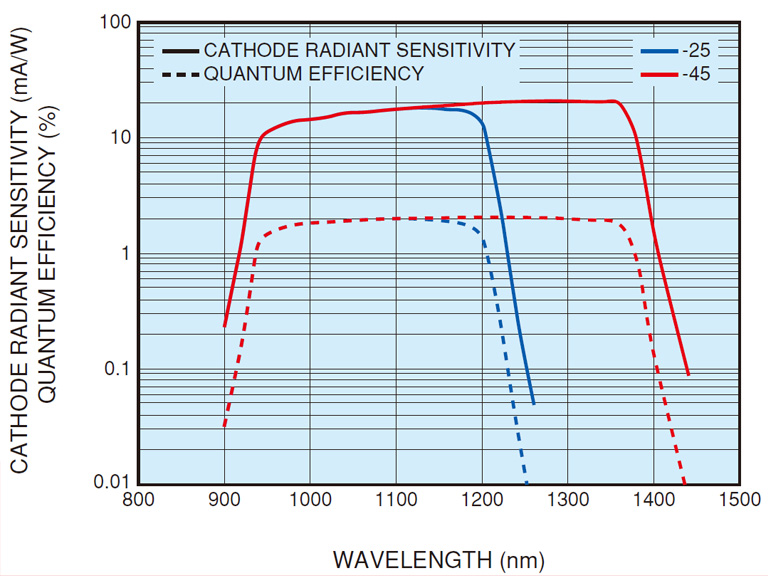

Spectral response (Typ.)

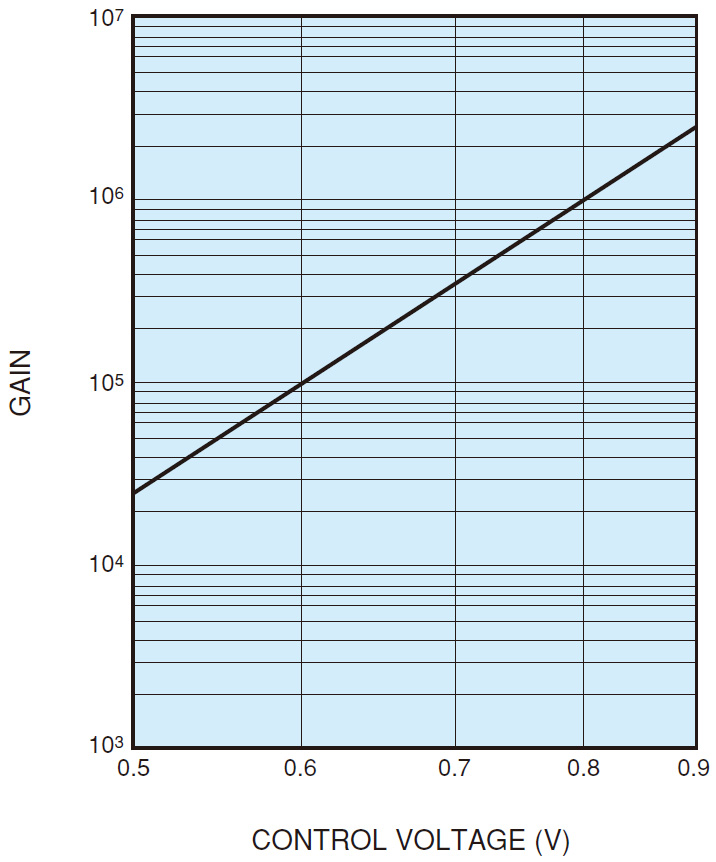

Gain (Typ.)

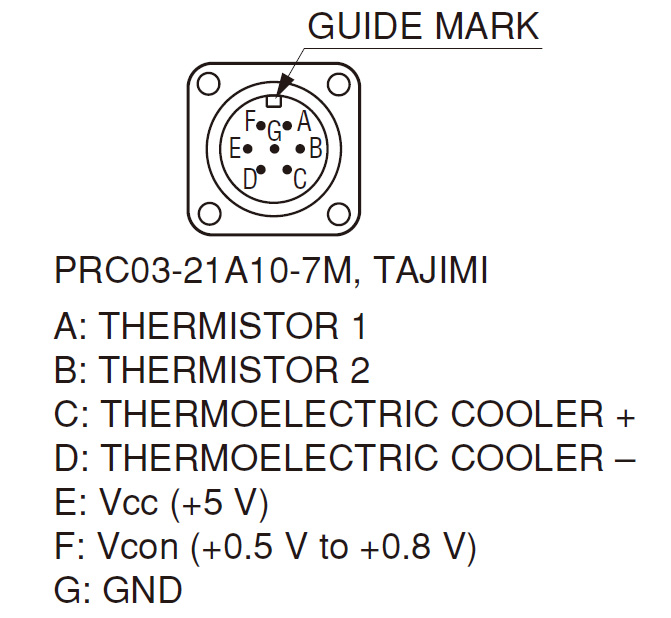

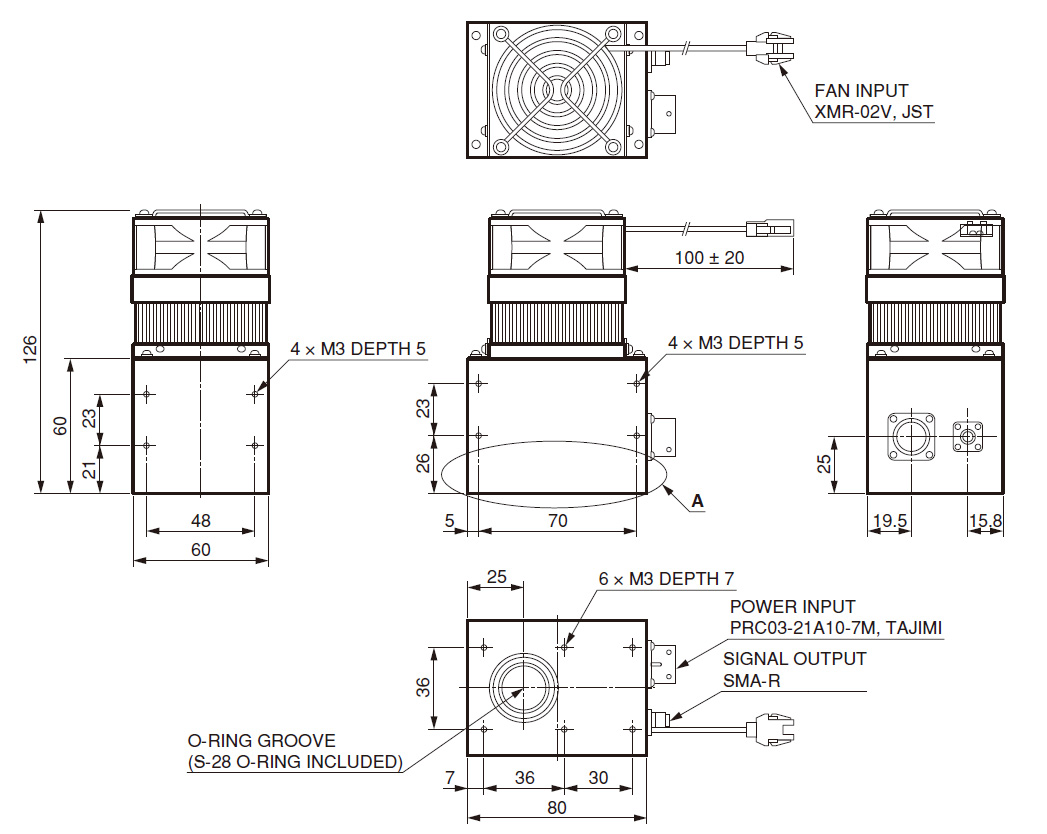

Dimensional outline (Unit: mm)

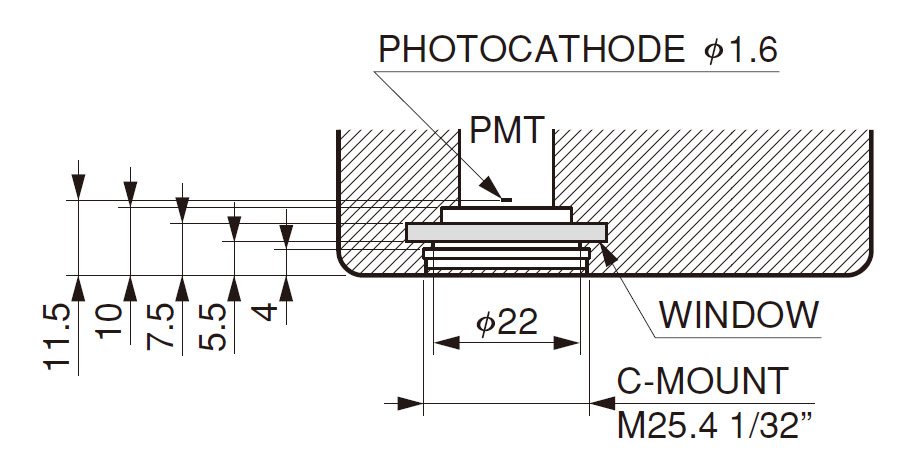

A cross section
Related products

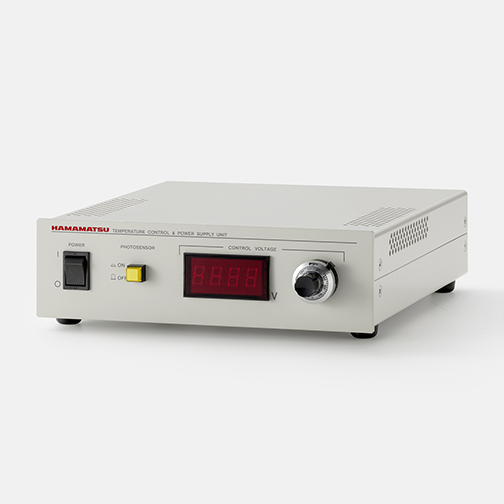

Controller C16137 series
The C16137 series is a bench-top power supply unit with a temperature control function. Just connecting to an AC source of 100 V to 240 V generates the output voltages for the thermoelectric cooler and the fan, which are needed for the H15620 series operation. The photomultiplier tube temperature can be maintained to -30 °C by monitoring the thermistor and regulating the output current for the thermoelectric cooler. Control voltage can be varied by a dial on the front panel.
Type No. guide
C16137-C□
Number in □ indicates power cable specifications
2: For Japan / For North America 3: For EU 4: For China 5: For UK 6: For Australia
Specifications
| Parameter | C16137 series | Unit |
|---|---|---|
| Setting cooling temperature (preset at factory) | -30 | ℃ |
| Output voltage for main circuit | +4.5 to +5.5 | V |
| Max. output current for main circuit | 100 | mA |
| Max. output voltage for thermoelectric cooler | 10.6 | V |
| Max. output current for thermoelectric cooler | 5 | A |
| Output voltage for fan | +11.4 to +12.6 | V |
| Control voltage (variable voltage range) | 0 to +0.9 | V |
| AC input voltage | 100 to 240 | V |
| Input power frequency | 50/60 | Hz |
| Power consumption | 140 | V·A |
| Operating Ambient Temperature | +5 to +35 | ℃ |
| Storage Temperature | -20 to +50 | ℃ |
| Usage environment | In door use, up to 2000 m altitude | - |
| Weight | 1870 | g |

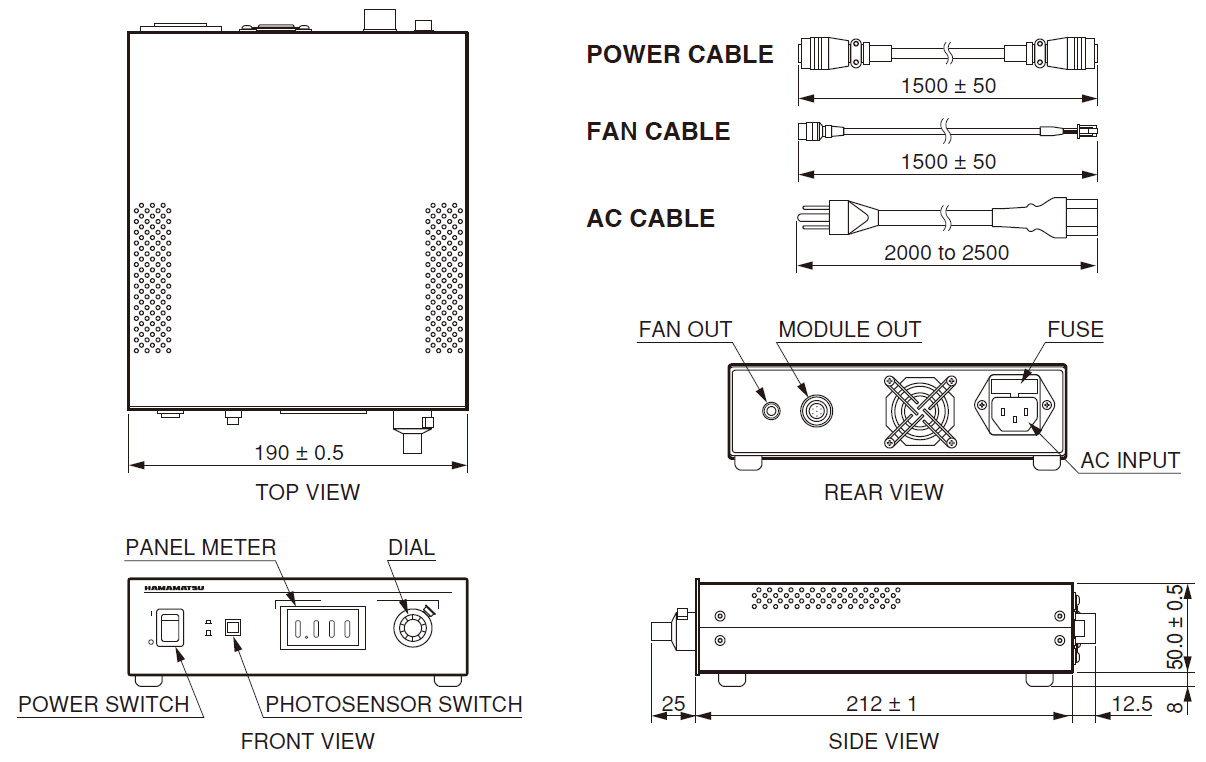

Dimensional outline (Unit: mm)
