Photomultiplier tube module
H16722P-50
The H16722 series are photomultiplier tube modules with an internal high-voltage power supply circuit and a cooler installed to the metal package photomultiplier tube having a GaAsP/GaAs photocathode. Efficient cooling was achieved by placing the cooler near the photomultiplier tube to reduce thermal noise emitted from the photocathode and a high S/N ratio can be obtained even at extremely low light levels. The H16722-50 series have sensitive along a wide spectral range from 380 nm to 900 nm. The photomultiplier tube is maintained at a constant temperature by monitoring the output from a thermistor installed near the photomultiplier and then regulating the current to the thermoelectric cooler.
Specifications
| Photocathode Area Shape | Round |
|---|---|
| Photocathode Area Size | Dia.5 mm |
| Wavelength (Short) | 380 nm |
| Wavelength (Long) | 900 nm |
| Wavelength (Peak) | 630 nm |
| Dimension (W x H x D) | 56.0 mm x 36.0 mm x 104.0 mm |
| Input Voltage | +11.5 to +15.5 V |
| Max. Input Voltage | +18 V |
| Max. Input Current | 30 mA |
| Max. Output Signal Current | 40 μA |
| Max. Control Voltage | +0.9 V |
| Recommended Control Voltage Adjustment Range | +0.5 V to +0.8 V |
| [Cathode] Radiant Sensitivity Typ. | 95 mA/W (at 630 nm) |
| [Anode] Radiant Sensitivity Typ. | 1.9 x 105 A/W (at 630 nm) |
| [Anode] P Type Dark Count Typ. | 125 s-1 |
| [Anode] P Type Dark Count Max. | 375 s-1 |
| [Time Response] Rise Time Typ. | 1 ns |
| Ripple Noise (peak to peak) Max. | 0.6 mV |
| Settling Time Max. | 0.2 s |
| Operating Ambient Temperature | +5 ℃ to +35 ℃ |
| Storage Temperature | -20 ℃ to +50 ℃ |
| Weight | 453 g |

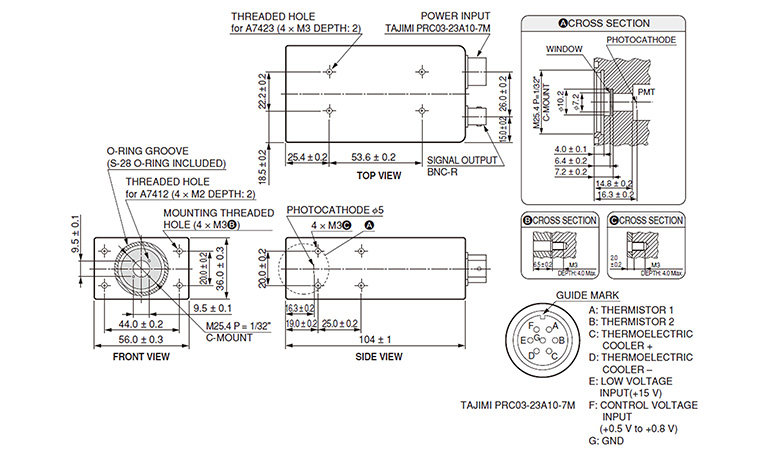

Dimensional outline (Unit: mm)
