Photomultiplier tube module


The H7826 series photomultiplier tube modules consist of a 19 mm (3/4") diameter head-on photomultiplier tube and a high-voltage power supply circuit. The length of the photomultiplier tube used here is short compared to other photomultiplier tubes of the same diameter, making it compact even though it has a large light input diameter of 15 mm. The H7826 series also has excellent resistance to vibration and shock compared to other photomultiplier tubes, making it ideal for use in portable equipment.

Photocathode Area Shape Round
Photocathode Area Size Dia.15 mm
Wavelength (Short) 300 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 380 nm
Dimension (W x H x D) 26.0 mm x 50.0 mm x 56.0 mm
Input Voltage +11.5 V to +15.5 V
Max. Input Voltage 18 V
Max. Input Current 40 mA
Max. Output Signal Current 100 μA
Max. Control Voltage 1.2 V
Recommended Control Voltage Adjustment Range +0.5 V to +1.1 V
[Cathode] Luminous Sensitivity Min. 80 μA/lm
[Cathode] Luminous Sensitivity Typ. 120 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. -
[Cathode] Red/White Ratio Typ. 0.2
[Cathode] Radiant Sensitivity Typ. 49 mA/W
[Anode] Dark Current (after 30min.) Typ. 3 nA
[Anode] Dark Current (after 30min.) Max. 20 nA
[Anode] P Type Dark Count Typ. 2000 s-1
[Anode] P Type Dark Count Max. 3500 s-1
[Time Response] Rise Time Typ. 1.5 ns
Ripple Noise (peak to peak) Max. 0.4 mV
Settling Time Max. 0.2 s
Operating Ambient Temperature +5 ℃ to +45 ℃
Storage Temperature -20 ℃ to +50 ℃
Weight 63 g

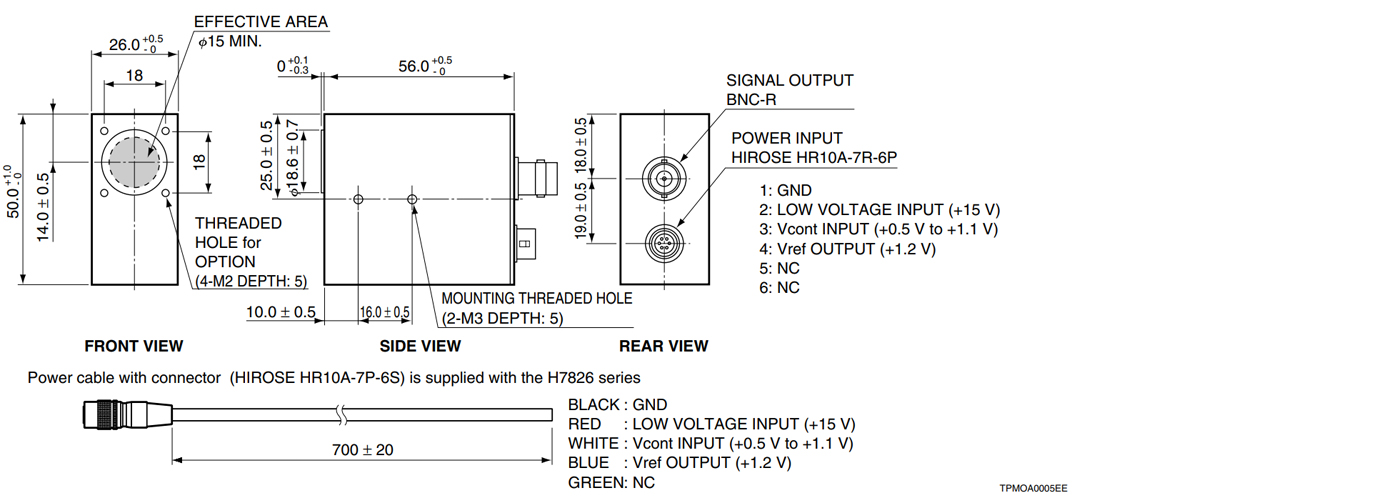

Dimensional outline (Unit: mm)
