Wide dynamic range PMT module
H13126-01
This H13126-01 is a wide dynamic range photomultiplier tube module with 3 signal outputs containing a PMT with effective area of 22-mm diameter and circuits of a high-voltage power supply, a high-speed photon counting and amplifiers. One output of this unit is digital for counting single photons and the other two outputs are analog for converting the output signal voltage to the number of photons. By bringing together these three results measured at the same time, a dynamic range of 10 orders of magnitude can be achieved at pulsed input light conditions.
Features
●Maximum counting rate: more than 5 x 10¹¹ s⁻¹
●DC to 20 MHz bandwidth
●Compact body
●Low dark count type
Specifications
| Parameter | Description / Value | Unit | ||
|---|---|---|---|---|
| Input voltage | +/-15 | V | ||
| Maximum input current(at ±15 V) |
+200 / -50 | mA | ||
| PMT | Effective photocathode area | Dia. 22 | mm | |
| Spectral response range | 300 to 650 | nm | ||
| Wavelength of maximum sensitivity | 375 | nm | ||
| Typical count sensitivity | 200 nm | - | s⁻¹･pW⁻¹ | |
| 300 nm | 1.3 x 10⁵ | |||
| 400 nm | 3.1 x 10⁵ | |||
| 500 nm | 1.9 x 10⁵ | |||
| 600 nm | 4.8 x 10⁴ | |||
Photon counting output |
Count linearity | 5 x 10⁶ | s⁻¹ | |
| Dark count *¹ | Typ. | 50 | s⁻¹ | |
| Output pulse width | 8 | ns | ||
| Output pulse height | 2.5 | V | ||
| Recommended load resistance | 50 | Ω | ||
Low range analog (AMP) output |
Count-analog conversion factor | 1 V / 4 x 10⁸ s⁻¹ | - | |
| Frequency bandwidth | DC to 20 | MHz | ||
| Maximum output signal | +3 (at 1 kΩ load) | V | ||
| Output offset | +/-1 | mV | ||
| DC linearity *² | +/-2.5 | % | ||
| Output impedance | 50 | Ω | ||
High range analog (AMP) output |
Count-analog conversion factor | 1 V / 1.7 x 10¹¹ s⁻¹ | - | |
| Frequency bandwidth | DC to 20 | MHz | ||
| Maximum output signal *³ | +3 (at 1 kΩ load) | V | ||
| Output offset | +/-1 | mV | ||
| DC linearity *² | +/-20 | % | ||
| Output impedance | 50 | Ω | ||
| Operating ambient temperature *⁴ | +5 to +40 | ℃ | ||
| Storage temperature *⁴ | -20 to +50 | ℃ | ||
| Weight | 400 | g | ||
| Cable length | 1000 | mm | ||
*¹ Measured after 3 h storage in the dark.
*² Total 10 digit linearity of photon counting to analog output is within ±20 %.
*³ Pulse output only when 40 mV or more.
*⁴ No condensation.

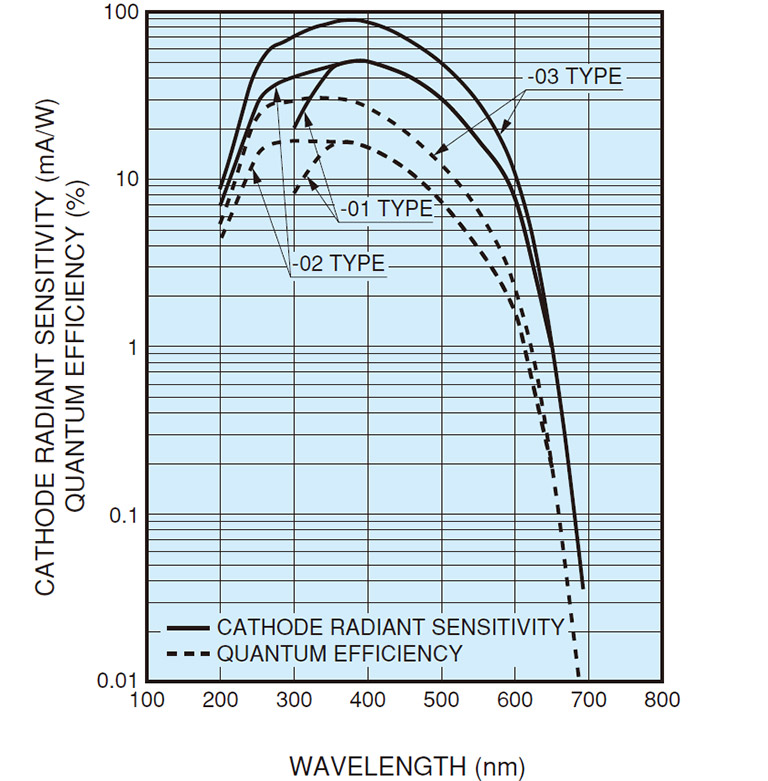

Typical spectral response

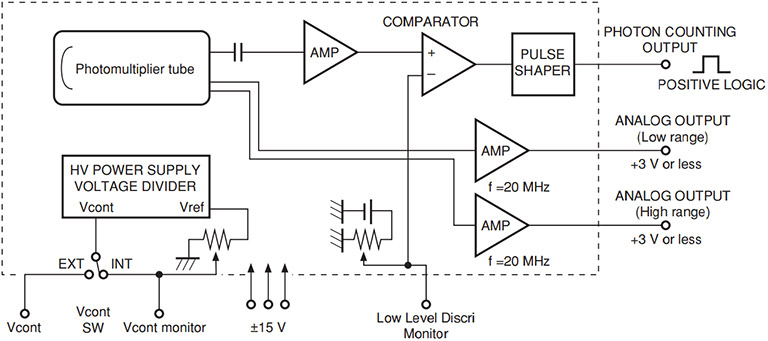

Block diagram

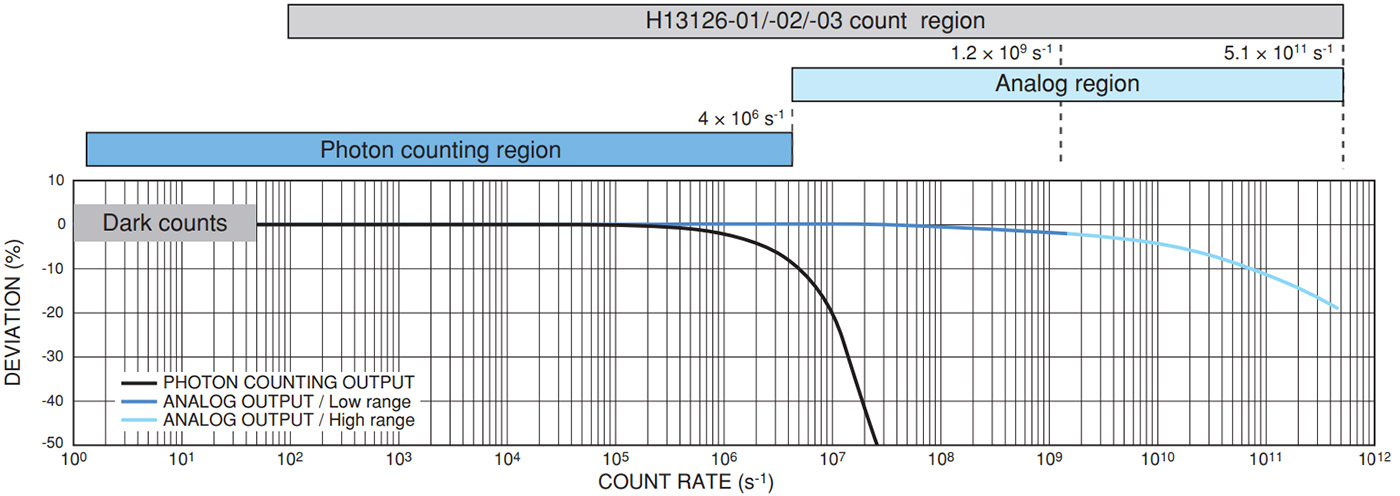

Measurement region

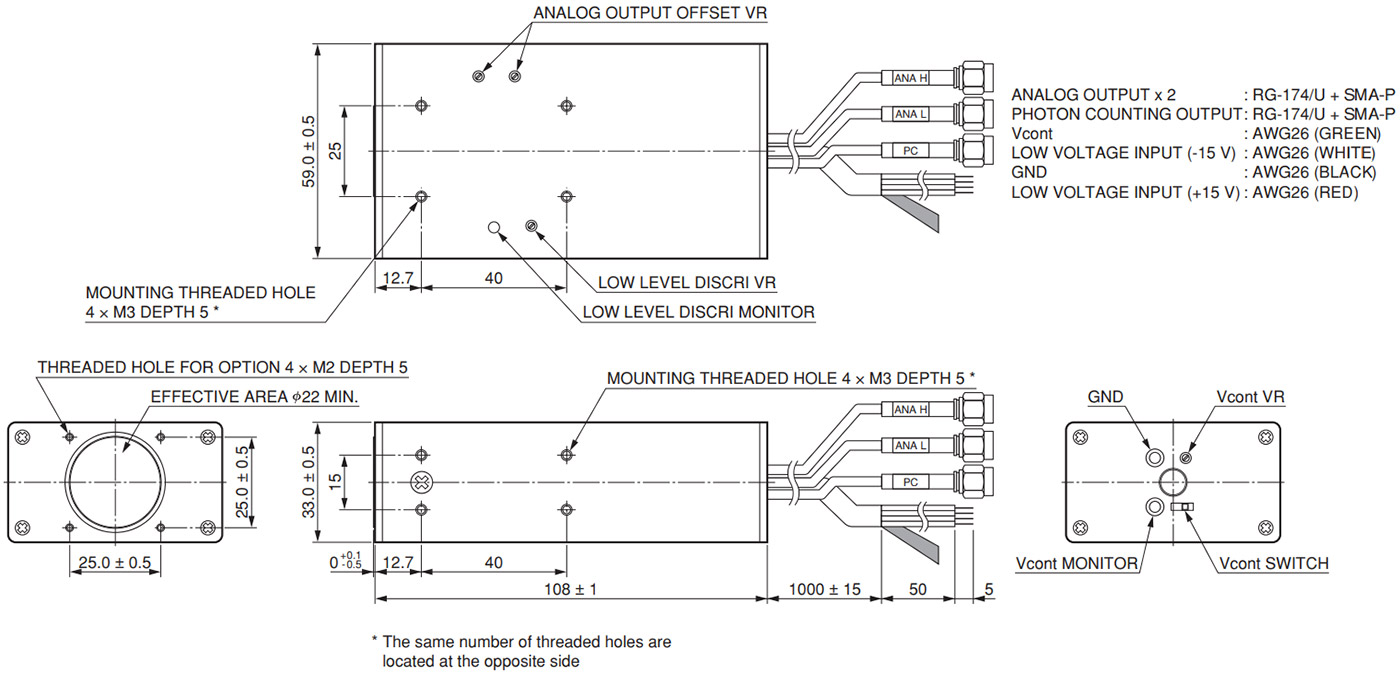

Dimensional outline (Unit mm)
