Photomultiplier tube unit
H10330C-75
H10330C series is an NIR-PMT unit using a compact NIR-PMT (near infrared photomultiplier tube) developed by our advanced photocathode technology. The NIR-PMT is contained in a thermally insulated sealed-off housing evacuated to a high vacuum. The internal thermoelectriccooler eliminates the need for liquid nitrogen and cooling water. The light input window of these modules use a condenser lens to provide a virtually larger photosensitive area allowing easy optical coupling. Adapters for connection to an optical fiber and monochromator are also available as options.
C10330C series have three types of lineups. (H10330C-75: 950 nm to 1700 nm, H10330C-25: 950 nm to 1200 nm, H10330C-45: 950 nm to 1400 nm)
Features
- High sensitivity (Applicable to photon counting)
- Fast time response: Rise time: 0.9 ns, T.T.S.: 400 ps
- Simple operation by air cooled TE cooler: no liquid nitrogen, no cooling water is necessary
- Operable in 20 min after switched ON
- Large detection area: Dia.18 mm for collimated light
Applications
- Photoluminescence measurement
- Singlet oxygen measurement
- LIDAR
- Raman spectroscopy measurement
- Cathodoluminescence measurement
- Fluorescence, fluorescence life time measurement
- Optical communication device evaluation
Characteristics

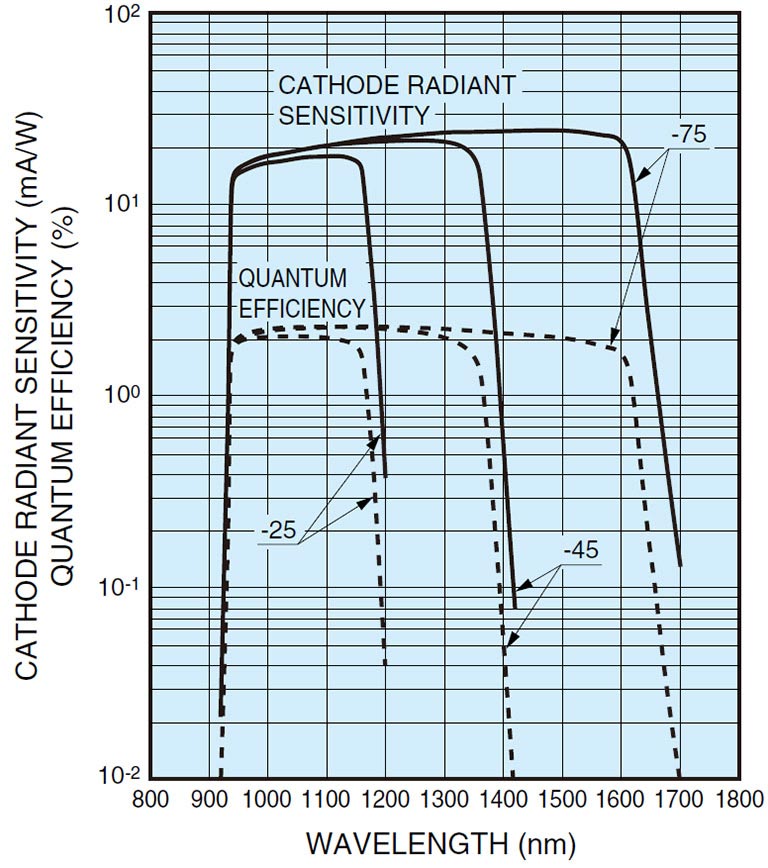

Spectral response
Timing properties

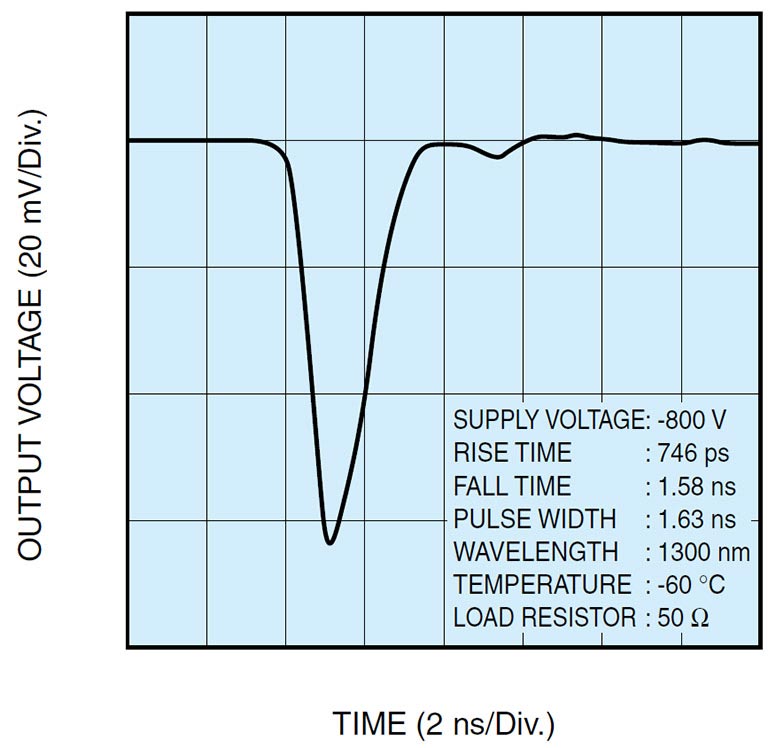

Waveform

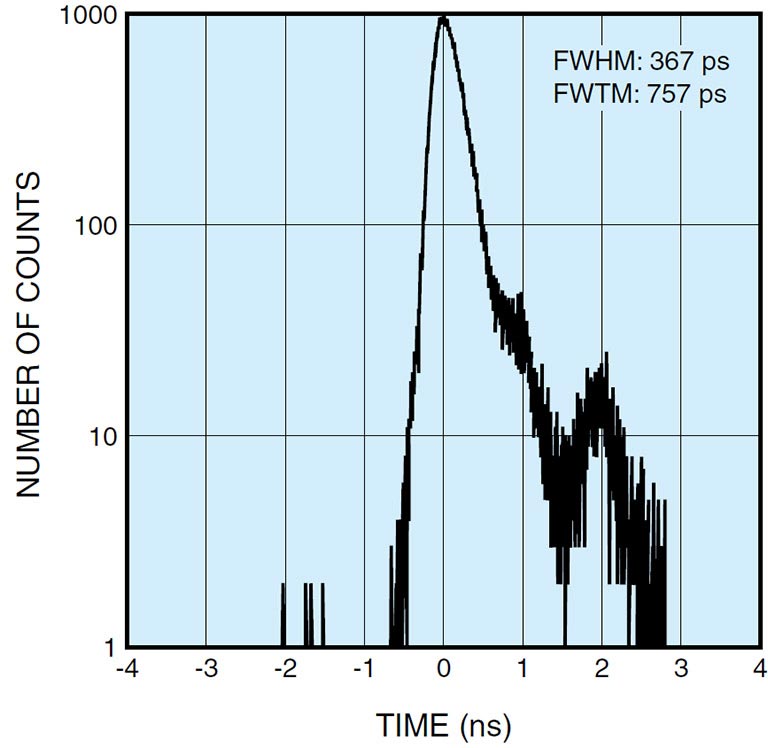

Transit time spread (T.T.S.)
Specifications
| Parameter | Description / Value | Unit | ||
|---|---|---|---|---|
| Spectral response | 950 to 1700 | nm | ||
| Photocathode material | InP/InGaAs | - | ||
| Detection area for collimated light | φ18 | mm | ||
| Effective area of PMT | φ1.6 | mm | ||
| Max. PMT supply voltage | -900 | V | ||
| Max. average PMT anode current | 1 | µA | ||
| Cathode *1 | Quantum efficiency | Min. | 1 | % |
| Typ. | 2 | |||
| Radiant sensitivity | Typ. | 25 | mA/W | |
| Anode | Radiant sensitivity *1*2 | Typ. | 2.5×104 | A/W |
| Gain | Typ. | 1.0×106 | - | |
| Anode dark current *2*3 | Typ. | 100 | nA | |
| Max. | 400 | |||
| Anode dark count *2*3 | Typ. | 2.5×105 | s-1 | |
| Time response | Rise time | Typ. | 0.9 | ns |
| Fall time | Typ. | 1.7 | ns | |
| Transit time spread | Typ. | 0.4 | ns | |
| PMT operating temperature | -60 | ℃ | ||
| PMT operating guaranteed voltage | -500 to -900 | V | ||
| Operating ambient temperature | +5 to +40 | ℃ | ||
| Operating ambient humidity *4 | Less than 80 | % | ||
| Storage temperature | -20 to +50 | ℃ | ||
| Storage humidity *4 | Less than 80 | % | ||
*1: At 1500 nm
*2: Supply voltage = -800 V
*3: After 30 min storage in darkness.
*4: No condensation.

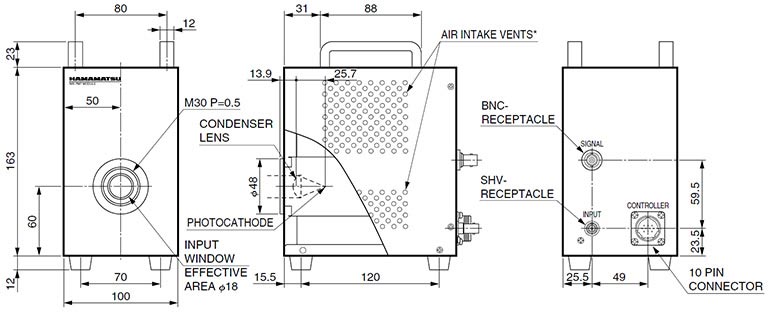

Dimensional outline (Unit: mm)
