Photomultiplier tube module

H10722-210

The H10722 series is a photomultiplier tube module containing a metal package PMT, a low-power consumption high-voltage power supply circuit, and a low-noise amplifier. The amplifier converts the PMT current output to a voltage output so that the signal can be easily processed. Also, the amplifier is connected close to the PMT anode output pin in order to make the signal less affected by external noise.

+15V input type H11902 series are available.

Photocathode Area Shape Round
Photocathode Area Size Dia.8 mm
Wavelength (Short) 230 nm
Wavelength (Long) 700 nm
Wavelength (Peak) 400 nm
Dimension (W x H x D) 60.0 x 22.0 x 22.0 mm
Input Voltage +/-4.5 to +/-5.5 V
Max. Input Voltage +/-5.5 V
Max. Input Current +6.2 / -3.5 mA
Max. Output Signal Voltage +4 (Load resistance 10 k-ohm) V
Max. Control Voltage +1.1 (Input impedance 1 M-ohm) V
Recommended Control Voltage Adjustment Range +0.5 to +1.1 (Input impedance 1 M-ohm) V
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 135 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 15.5
[Cathode] Radiant Sensitivity Typ. 130 mA/W
[Anode] Luminous Sensitivity Min 1.0 x 108 V/lm
[Anode] Luminous Sensitivity Typ. 2.7 x 108 V/lm
[Anode] Radiant Sensitivity Typ. 260 V/nW
[Anode] Vout Depending on PMT Dark Current Typ. 1 mV
[Anode] Vout Depending on PMT Dark Current Max. 10 mV
Current to Voltage Coversion Factor 1 V/uA
Output Offset Voltage Typ. +/- 1 mV
Ripple Noise (peak to peak) Max. 0.5 mV
Settling Time Max. 10 s
Operating Ambient Temperature +5 to +50 ℃
Storage Temperature -20 to +50 ℃
Weight 90 g

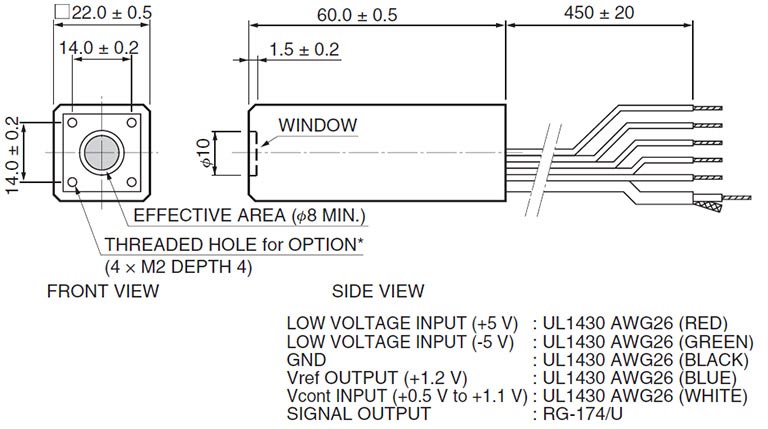

Dimensional outline

Dimensional outline
