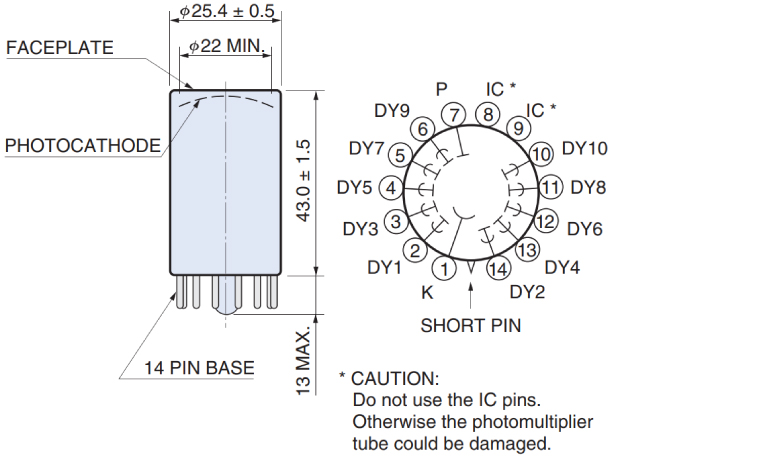

|Tube Size||Dia.25 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.22 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||375 nm|
|Spectral Response Curve Code||401K|
|Photocathode Material||High temp bialkali|
|Window Material||Borosilicate glass|
|Dynode Structure||Circular and linear-focused|
|[Max. Rating] Anode to Cathode Voltage||1800 V|
|[Max. Rating] Average Anode Current||0.02 mA|
|Anode to Cathode Supply Voltage||1500 V|
|[Cathode] Luminous Sensitivity Min.||20 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||40 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||6|
|[Cathode] Radiant Sensitivity Typ.||51 mA/W|
|[Anode] Luminous Sensitivity Min.||8 A/lm|
|[Anode] Luminous Sensitivity Typ.||20 A/lm|
|[Anode] Radiant Sensitivity Typ.||2.6 x 104 A/W|
|[Anode] Gain Typ.||5.0 x 105|
|[Anode] Dark Current (after 30min.) Typ.||0.1 nA|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Time Response] Rise Time Typ.||1.3 ns|
|[Time Response] Transit Time Typ.||13 ns|
