Microchannel plate photomultiplier tube

R3809U-64

45 mm dia. MCP-PMT, GaAsP photocathode (Effective Area: 10 mm dia., Spectral response: 280 nm to 720 nm)

Type MCP-PMT
Tube Size Dia.45 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.10 mm
Wavelength (Short) 280 nm
Wavelength (Long) 720 nm
Wavelength (Peak) 550 nm to 650 nm
Photocathode Material GaAsP
Window Material Borosilicate glass
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Cathode] Luminous Sensitivity Min. 400 μA/lm
[Cathode] Luminous Sensitivity Typ. 700 μA/lm
[Cathode] Radiant Sensitivity Typ. 180 mA/W
[Anode] Luminous Sensitivity Typ. 210 A/lm
[Anode] Gain Typ. 3.0 x 105
[Time Response] Rise Time Typ. 200 ps
[Time Response] Transit Time Spread Typ. 85 ps

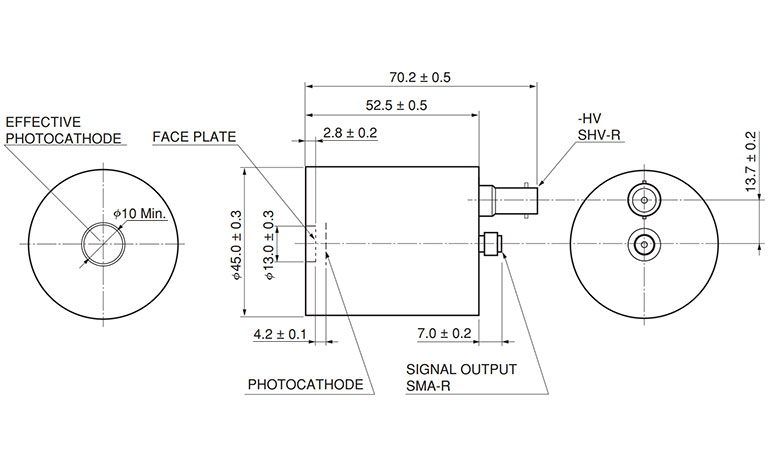

Dimensional outline (Unit: mm)
